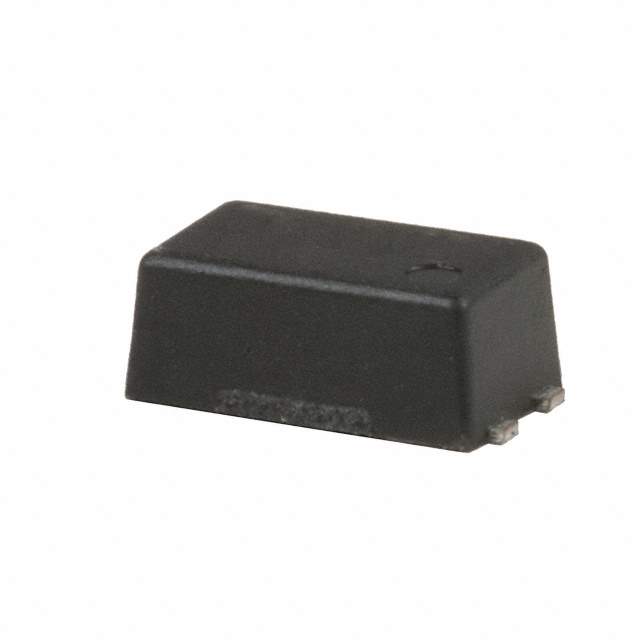

PS2933-1-AX

Name: PS2933-1-AX
Brand: CEL
SKU: 1089862
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	PS2933-1-AX
Manufacturer	CEL
Catalog	Optoisolators - Transistor, Photovoltaic Output
Description	OPTOISOLATR 2.5KV DARL 4MINIFLAT / Optoisolator Darlington Output 2500Vrms 1 Channel 4-Mini-Flat
Datasheet	PS2933-1-AX Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Isolators>Optoisolators - Transistor, Photovoltaic Output
Mfr	CEL
Series	NEPOC
Package	Strip
Number of Channels	1
Voltage - Isolation	2500Vrms
Current Transfer Ratio (Min)	400% @ 1mA
Current Transfer Ratio (Max)	4500% @ 1mA
Rise / Fall Time (Typ)	20µs, 5µs
Input Type	DC
Output Type	Darlington
Voltage - Output (Max)	350V
Current - Output / Channel	60mA
Voltage - Forward (Vf) (Typ)	1.1V
Current - DC Forward (If) (Max)	50 mA
Vce Saturation (Max)	1V
Temperature Range - Operating	-55°C ~ 100°C
Mounting	SMD (SMT)
Package / Case	4-SMD, Flat Leads
Supplier Device Package	4-Mini-Flat
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.49.8000
Standard Package	100
Win Source Part Number	1089862-PS2933-1-AX
Ultra Librarian 3D Model	Ultra Librarian PS2933-1-AX CAD Model

Description

The CEL PS2933-1-AX is a single-channel optoisolator designed for use in DC input applications.

Isolation Voltage: 2500Vrms
Current Transfer Ratio: 400% to 4500%
Supply Voltage: 4.5V to 5.5V
Maximum Forward Voltage: 1.1V
Mounting Style: SMD (SMT)
Package: 4-Mini-Flat
Rise Time: 20μs
Fall Time: 5μs
Maximum Output Voltage: 350V
Popularity: Medium
Series: NEPOC
