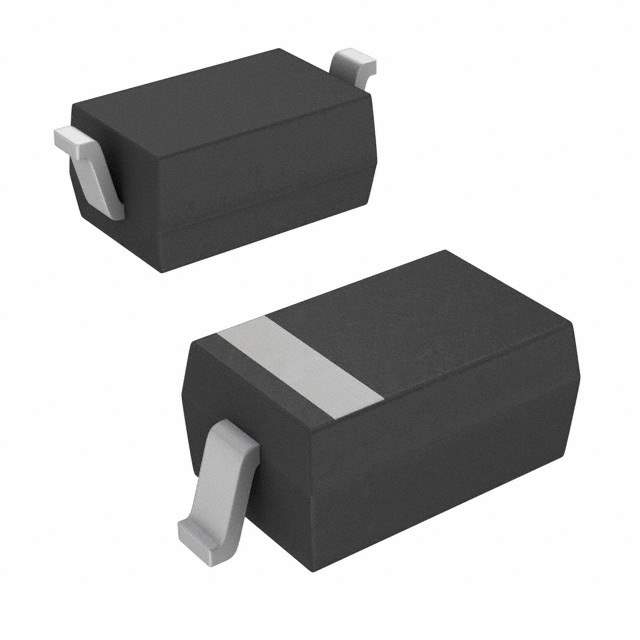

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr MDD
Series SOD-123FL
Package Tape & Reel
Product Status Active
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 40 V
Current - Average Rectified (Io) 1.5A
Voltage - Forward (Vf) (Max) @ If 690 mV @ 1 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 1 mA @ 40 V
Capacitance @ Vr, F 120pF @ 4V, 1MHz
Mounting Type Surface Mount
Package / Case SOD-123F
Supplier Device Package SOD-123FL
Operating Temperature - Junction -65°C ~ 150°C
Standard Package 12,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 568125-B5819W
Ultra Librarian 3D Model Ultra Librarian B5819W CAD Model

Description

The 568125-B5819W is a fast recovery Schottky diode in a SOD-123FL package.

  • Maximum DC Reverse Voltage: 40V
  • Average Rectified Current: 1.5A
  • Forward Voltage @ 1A: 690mV
  • Reverse Leakage Current: 1mA @ 40V
  • Capacitance: 120pF @ 4V and 1MHz
  • Operating Temperature Range: -65°C to 150°C
  • Suitable for: applications requiring fast recovery and low forward voltage drop
  • Mounting: surface mountable
  • Packaging: tape and reel
  • Category: Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
  • Status: active product
