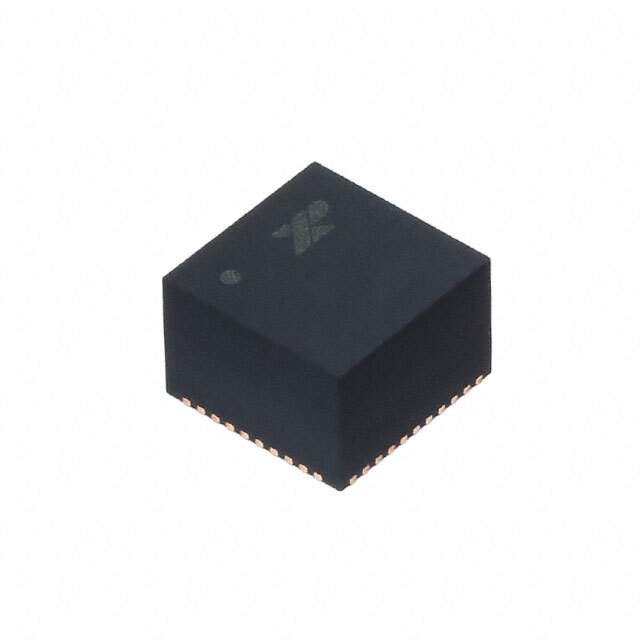

XR79103EL-F Real Image
Same model may have multiple batches, images only for reference.

XR79103EL-F

Part No XR79103EL-F
Manufacturer MaxLinear Inc
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 0.6-5.5V / Non-Isolated PoL Module DC DC Converter 1 Output 0.6 ~ 5.5V 3A 4.5V - 22V Input
Datasheet
XR79103EL-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr MaxLinear, Inc.
Package Tray
Type Non-Isolated PoL Module
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 22V
Voltage - Output 1 0.6 ~ 5.5V
Current - Output (Max) 3A
Applications ITE (Commercial)
Features OCP, OTP, SCP, UVLO
Temperature Range - Operating -40°C ~ 125°C
Efficiency 95%
Mounting Type Surface Mount
Package / Case 42-PowerBFQFN Module
Size / Dimension 0.24" L x 0.24" W x 0.16" H (6.0mm x 6.0mm x 4.0mm)
Supplier Device Package 42-QFN (6x6)
Base Product Number XR79103
Standard Package 490
MSL Level 3 (168 Hours)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1338422-XR79103EL-F
Ultra Librarian 3D Model Ultra Librarian XR79103EL-F CAD Model

Description

This non-isolated PoL module is designed for electronic components and is a power supply board mount DC DC converter.

  • Features: OCP, OTP, SCP, UVLO
  • Mounting Type: Surface Mount
  • Package: Tray
  • Size/Dimension: 0.24 inches L x 0.24 inches W x 0.16 inches H (6.0mm x 6.0mm x 4.0mm)
  • Application: ITE (Commercial)
  • Standard Package: 490
  • Outputs: One
  • Maximum Current Output: 3A
  • Voltage Input: 4.5V to 22V
  • Voltage Output: 0.6 to 5.5V
  • Efficiency: 95 percent
  • Package/Case: 42-PowerBFQFN Module
  • Supplier Device Package: 42-QFN (6x6)
  • Temperature Range: -40°C ~ 125°C
  • ECCN: EAR99.39.0001
  • Manufacturer: MaxLinear Inc.
  • Base Product Number: XR79103
