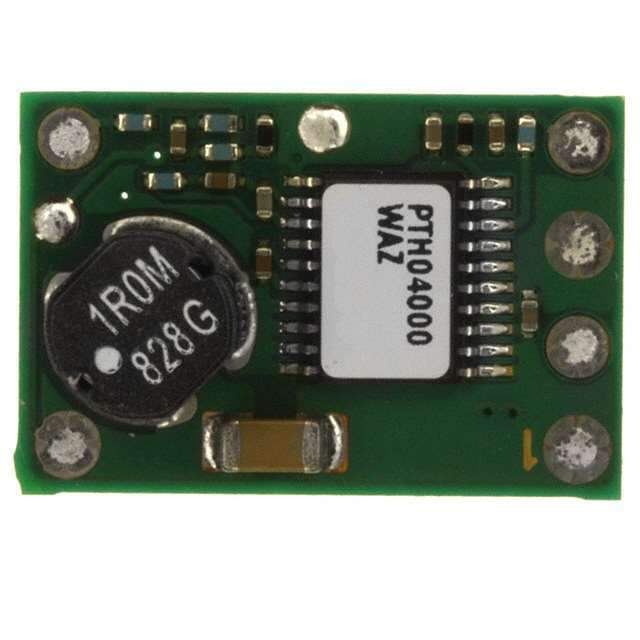

Product Overview: PTH04000WAZT from Texas Instruments

The PTH04000WAZT is a high-performance, non-isolated module power converter from Texas Instruments (TI), designed to meet the needs of a wide range of applications. This compact and efficient power module is part of TI's extensive range of power management solutions, offering the reliability and performance expected from a leading semiconductor manufacturer.

Key Features

• Wide Input Voltage Range: The PTH04000WAZT can operate with an input voltage range of 2.95 V to 5.5 V, making it versatile for various applications, including those that require a direct connection to a 3.3V or 5V bus.
• Adjustable Output Voltage: This power module provides an adjustable output voltage from 0.8 V to 3.6 V, allowing designers to customize the voltage level to suit their specific circuit requirements.
• High Efficiency: With an efficiency of up to 90%, the PTH04000WAZT ensures minimal power loss during conversion, which is crucial for energy-sensitive designs.
• Output Current: It can deliver up to 3A of output current, sufficient for powering a wide array of integrated circuits and other electronic components.
• Small Footprint: The compact size of the module (10.16mm x 9.42mm x 2.95mm) allows for easy integration into space-constrained applications.
• Thermal Performance: Enhanced thermal performance is achieved through the use of a thermally efficient package and optimized design, ensuring reliable operation even at full load.
• Protection Features: The PTH04000WAZT includes over-current and over-temperature protection, safeguarding the module and the downstream components from potential damage.

Applications

The versatility of the PTH04000WAZT makes it suitable for a broad spectrum of applications, including but not limited to:

• Telecommunications equipment
• Data acquisition systems
• Mixed analog/digital subsystems
• Field-Programmable Gate Array (FPGA) power supplies
• Microprocessor and DSP power supplies

In summary, the PTH04000WAZT from Texas Instruments is a powerful, adaptable, and efficient solution for modern electronic power supply requirements. Its small form factor, coupled with its robust feature set, makes it an ideal choice for designers looking to optimize their power management strategies.
