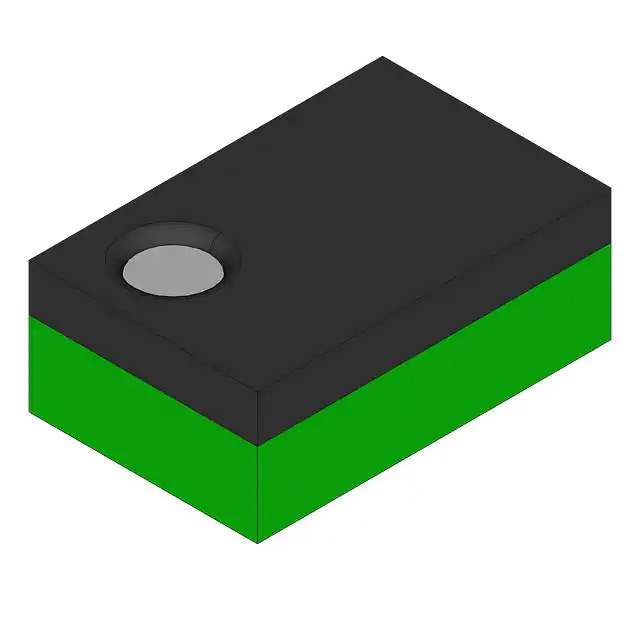

Maxim Integrated MAX6023EBT25 Precision Voltage Reference

The MAX6023EBT25 from Maxim Integrated is a high-precision, low-power voltage reference designed for use in a wide range of applications. This compact, surface-mount device is part of Maxim's family of low-dropout, micropower series voltage references that offer excellent accuracy and temperature stability.

The MAX6023EBT25 provides a fixed output voltage of 2.5V with an impressive initial accuracy of ±0.2%. Its low dropout voltage and low supply current make it ideal for battery-operated equipment, while its high accuracy is suited for precision data converters and portable instrumentation.

Key Features:

• High Accuracy: The device offers an initial accuracy of ±0.2%, ensuring reliable performance for precision applications.
• Temperature Stability: With a temperature coefficient as low as 75ppm/°C, the MAX6023EBT25 maintains its accuracy over a wide temperature range.
• Low Dropout Voltage: The low dropout feature allows the voltage reference to operate efficiently with minimal input-to-output differential.
• Low Power Consumption: The device is optimized for battery-powered applications, with a supply current of just 95µA (typical).
• Small Package: Available in a 6-pin TDFN package, the MAX6023EBT25 saves valuable board space in compact electronic designs.
• Wide Operating Voltage Range: It operates over a wide supply voltage range from 2.7V to 12.6V, providing design flexibility.

Applications:

• Precision Data Converters
• Battery-Operated Devices
• Portable Instrumentation
• Industrial and Process Control Systems
• Automotive Electronics
• Medical Equipment

Overall, the MAX6023EBT25 is a robust voltage reference that combines high precision with low power consumption, making it an excellent choice for designers who need a stable reference voltage in a small footprint. Its performance and versatility make it suitable for a variety of sophisticated electronic systems, ensuring consistent operation even under varying environmental conditions.
