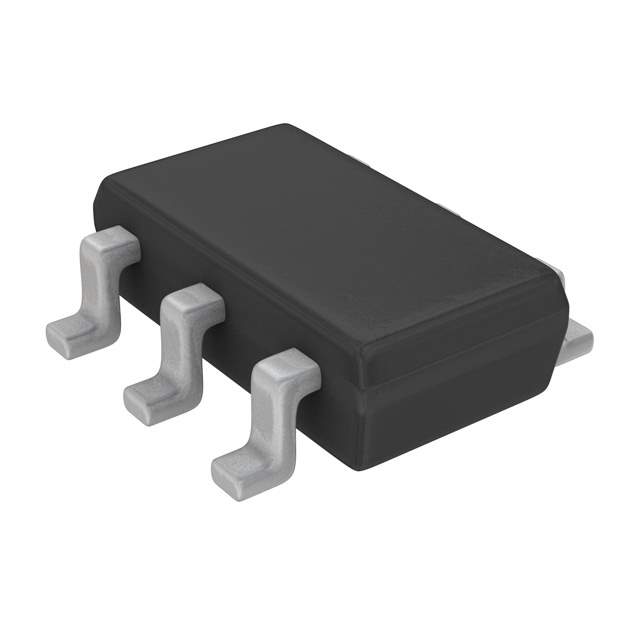

MAX5471EZT+T

Part No MAX5471EZT+T
Manufacturer Maxim Integrated
Catalog Data Acquisition - Digital Potentiometers
Description Digital Potentiometer 50kOhm 32POS Non-Volatile Linear 6-Pin TSOT-23 T/R / IC POT DGTL 32TAP NV TSOT23-6
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Maxim Integrated
Packaging Reel package
Taper Linear
Configuration Potentiometer
Number of Circuits 1
Number of Taps 32
Resistance (Ohms) 50k
Interface Up/Down (U/D, CS)
Memory Type Non-Volatile
Operating Supply Voltage 2.7 V ~ 5.25 V
Temperature Coefficient (Typ) 35 ppm/°C
Operating Temperature Range -40°C ~ 85°C
Package SOT-23-6 Thin, TSOT-23-6
Manufacturer Package TSOT-23-6
Win Source Part Number 786551-MAX5471EZT+T
Popularity Medium
Supply and Demand Status Limited
Family Name MAX5471
Introduction Date October 01, 2003
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian MAX5471EZT+T CAD Model

Description

Maxim Integrated MAX5471EZT+T Digital Potentiometer

The MAX5471EZT+T from Maxim Integrated is a high-performance digital potentiometer designed to offer precision and reliability for a wide range of applications. This advanced device is part of Maxim's family of nonvolatile digital potentiometers that simulate the analog functionality of a mechanical potentiometer with the added advantages of digital control. The MAX5471EZT+T is suitable for applications that require precise calibration and control, such as adjustable power supplies, LCD screen adjustment, and audio signal conditioning.

The MAX5471EZT+T operates from a single +2.7V to +5.5V supply and features a 3-wire SPI-compatible serial interface. This allows for easy integration into microcontroller-based systems, facilitating digital control of resistance settings. The device features a 10kΩ end-to-end resistance with a total of 256 tap points, providing fine resolution for precise adjustments. The wiper position of the digital potentiometer can be stored in the onboard nonvolatile memory, ensuring that the last set resistance value is retained even after power is removed.

With its low temperature coefficient and wide operating temperature range from -40°C to +125°C, the MAX5471EZT+T ensures stable performance across various environmental conditions. This makes it an excellent choice for both industrial and consumer applications where temperature variations are a concern.

The compact package design, a 3mm x 3mm 8-pin TDFN (Thin Dual Flat No-lead), allows for efficient use of board space, which is crucial in space-constrained applications. Additionally, the lead-free and RoHS-compliant package aligns with modern environmental standards, making it a responsible choice for eco-friendly product designs.

In summary, the Maxim Integrated MAX5471EZT+T digital potentiometer offers a versatile and precise solution for electronic designs that require variable resistance settings. With its digital interfacing, nonvolatile memory, and robust performance, it is an ideal component for designers looking to enhance the functionality and reliability of their systems.
