Maxim Integrated MAX4695EGC-T Analog Switch

The MAX4695EGC-T is a high-performance, low-voltage single analog switch from Maxim Integrated, designed to provide precision and efficiency for a wide range of applications. This compact and versatile component is a perfect solution for systems requiring minimal power consumption and maximum reliability.

Key Features:

• Low On-Resistance: The MAX4695EGC-T offers a low on-resistance of typically 0.5 ohms, which ensures minimal signal distortion and power loss, making it ideal for high-frequency signal switching.
• Single-Supply Operation: Operating from a single +1.8V to +5.5V supply, this analog switch is compatible with various low-voltage applications, including portable and battery-powered devices.
• Fast Switching Speeds: With switch times of less than 250ns for turn-on and less than 150ns for turn-off, the MAX4695EGC-T is capable of handling rapid signal changes, thus maintaining signal integrity.
• Low Power Consumption: The device features a low power consumption, with an on-leakage current of only 0.1nA at +25°C, conserving energy and extending battery life in portable applications.
• High Current Handling: The switch can handle continuous current up to 300mA, making it suitable for a variety of signal routing and data acquisition tasks.

Applications:

The MAX4695EGC-T is versatile and can be used in a range of applications, including:

• Portable instruments
• Sample and hold circuits
• Audio and video signal routing
• Communication systems
• Data acquisition systems
• Battery-powered applications

Package and Quality:

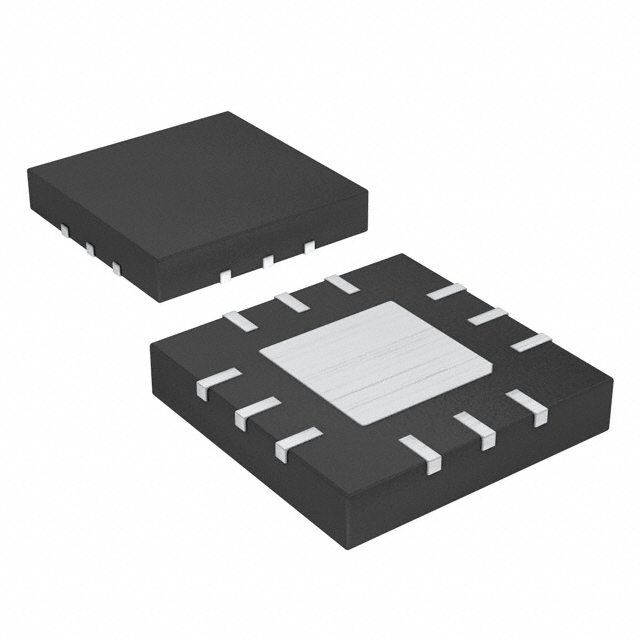

The MAX4695EGC-T comes in a 12-pin TQFN package, which is not only space-saving but also offers excellent thermal performance. Maxim Integrated is known for its commitment to quality, and this product is no exception. It is designed and manufactured to meet the highest standards, ensuring reliable performance in even the most demanding environments.

With its combination of low on-resistance, fast switching speeds, and low power consumption, the MAX4695EGC-T from Maxim Integrated is a smart choice for designers looking to optimize their analog signal switching capabilities.
