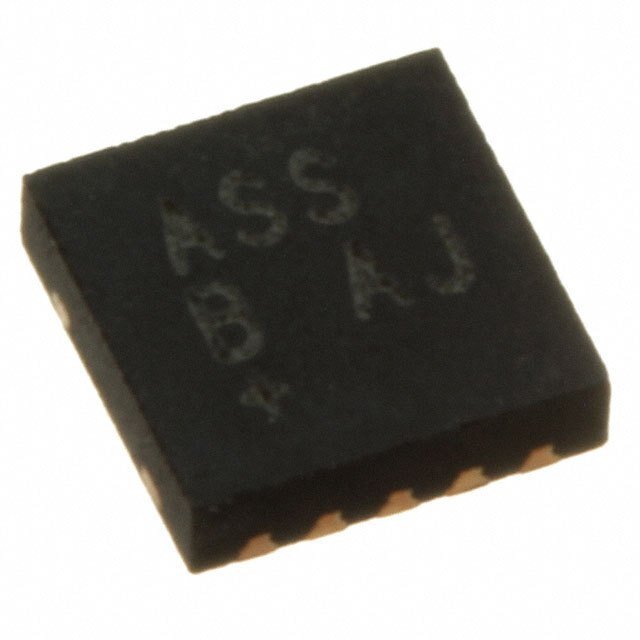

Maxim Integrated MAX4684ETB Analog Switch

The MAX4684ETB from Maxim Integrated is a high-performance, single-pole/double-throw (SPDT) analog switch that is designed to deliver precision and efficiency in a compact package. This versatile component is ideal for a variety of applications, including signal routing, data acquisition systems, and communication devices. Its small 10-µDFN (3mm x 3mm) package makes it perfect for space-constrained applications where performance cannot be compromised.

The MAX4684ETB operates with a single supply voltage ranging from +1.8V to +5.5V, making it suitable for both portable and low-voltage systems. Its low on-resistance of 0.5 ohms (typical) ensures minimal signal distortion and power loss, which is essential for maintaining signal integrity in critical applications. Moreover, the device boasts a fast switching speed of 20ns (max), allowing for rapid signal routing without significant delays.

One of the key features of the MAX4684ETB is its low power consumption, with a quiescent current of less than 1µA, which is crucial for battery-powered devices where energy efficiency is paramount. Additionally, the device offers high off-isolation and crosstalk performance, which minimizes interference between channels and ensures clean, reliable signal transmission.

For added flexibility, the MAX4684ETB includes break-before-make switching action, which prevents unwanted signal mixing during state changes. This feature is especially important in multiplexing applications where signal integrity is critical. The device also features ESD protection up to ±2000V, ensuring robustness and longevity in harsh electrical environments.

In summary, the Maxim Integrated MAX4684ETB analog switch is a high-quality, versatile component that offers excellent performance in a tiny footprint. With its low on-resistance, fast switching speed, and low power consumption, it is well-suited for a wide range of applications that require efficient and reliable signal routing.
