Maxim Integrated MAX4077EUA Precision Op-Amp

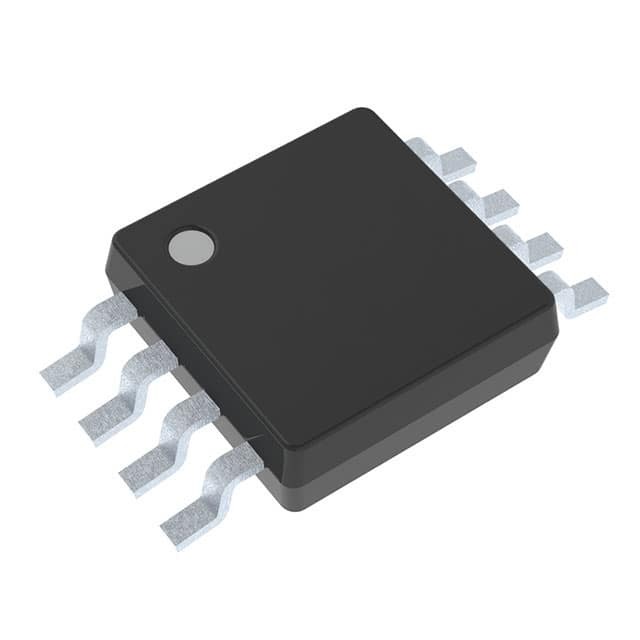

The MAX4077EUA is a high-precision operational amplifier (op-amp) from Maxim Integrated, designed for use in a variety of applications where accuracy and stability are paramount. This precision op-amp is housed in a compact 8-pin µMAX package, making it suitable for space-constrained designs while offering excellent performance characteristics.

One of the standout features of the MAX4077EUA is its low offset voltage, which is specified at 25 µV (max) at room temperature. This low offset ensures that the accuracy of the signal processing is maintained, which is critical in precision applications such as sensor interfacing, A/D converter driving, and instrumentation. The device also boasts a low drift over temperature, further enhancing its reliability in varying environmental conditions.

The MAX4077EUA provides a gain-bandwidth product of 800kHz, which allows for a good balance between speed and power consumption. This makes it an excellent choice for battery-powered devices, medical instruments, and other portable applications. The op-amp operates from a single supply voltage ranging from +2.85V to +5.5V, or from dual supplies of ±1.425V to ±2.75V, providing flexibility in various circuit designs.

With a quiescent current of just 750µA, the MAX4077EUA is optimized for low-power operations, contributing to the extended battery life of the end product. Additionally, the device features rail-to-rail outputs, which allow the output signal to swing very close to the supply rails, maximizing the dynamic range in applications with limited supply voltages.

The MAX4077EUA also includes integrated EMI (electromagnetic interference) filters, which reduce the sensitivity to high-frequency interference, ensuring stable performance in environments with significant electronic noise. This makes the op-amp well-suited for industrial applications where EMI can be a concern.

In summary, the Maxim Integrated MAX4077EUA precision op-amp is a versatile component that offers low voltage offset, low drift, moderate bandwidth, and low power consumption, all in a small package. It is an excellent choice for designers looking for a reliable op-amp for precision analog processing in both consumer and industrial applications.
