The MAX3800UHJ from Maxim Integrated is a high-performance, fully integrated equalizer and cable driver, designed to extend the reach of high-speed serial data links in storage, networking, and telecommunications applications. This advanced component is engineered to condition and drive signals over various media types including coaxial cable, fiber optics, and printed circuit board (PCB) traces.

Key Features

• Signal Conditioning: The MAX3800UHJ includes both an equalizer and a cable driver, which work together to compensate for the signal degradation typically encountered over long distances. The equalizer is capable of restoring signals that have been attenuated by the transmission medium, while the cable driver provides the necessary output swing for driving signals over long cables or backplanes.
• Data Rate Flexibility: This device is designed to support a wide range of data rates, making it suitable for various high-speed serial interfaces. It can handle data rates up to 12.5Gbps, ensuring compatibility with standards such as 10 Gigabit Ethernet, Fibre Channel, and other high-speed data protocols.
• Low Power Consumption: Maxim Integrated's focus on power efficiency is evident in the MAX3800UHJ, which operates with low power dissipation. This characteristic is particularly important in high-density applications where thermal management is a critical concern.

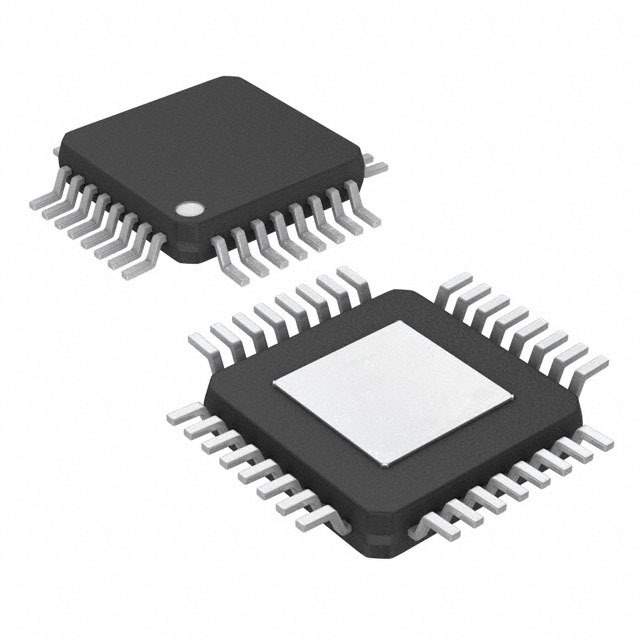

• Compact Form Factor: Housed in a space-saving 32-pin TQFP package, the MAX3800UHJ is designed for integration into systems where board space is at a premium.
• Integrated Features: The device includes additional features such as programmable output pre-emphasis and input equalization, output amplitude control, and signal detect, further enhancing its utility in complex systems.

Applications

The MAX3800UHJ is well-suited for a variety of applications where signal integrity is paramount. Its ability to drive high-speed signals over long distances makes it ideal for use in:

• Data center storage systems
• High-speed networking equipment
• Telecommunications infrastructure
• High-definition video transmission systems
• Backplane interconnects

With its combination of performance, integration, and efficiency, the MAX3800UHJ is a compelling solution for designers looking to enhance the reach and reliability of their high-speed data communications.
