Product Overview: MAX339CEE+ from Maxim Integrated

The MAX339CEE+ is a precision analog multiplexer from Maxim Integrated, designed to provide high-performance switching capabilities for analog signal routing applications. This device is a part of Maxim's family of CMOS analog ICs, offering a combination of low on-resistance and low on-leakage current, making it an excellent choice for precision analog systems.

The MAX339CEE+ features four single-pole/double-throw (SPDT) switches, which can be controlled via a digital interface. The multiplexer operates with a single supply voltage ranging from +4.5V to +36V or dual supplies of ±4.5V to ±20V, providing flexibility in various application environments. This wide voltage range makes the MAX339CEE+ suitable for use in both industrial and consumer products where varying power supply conditions are common.

One of the key advantages of the MAX339CEE+ is its low charge injection, which minimizes the distortion in precision analog circuits. This characteristic, combined with low power consumption and ESD protection greater than 2000V per Method 3015.7, ensures reliable performance in sensitive applications such as data acquisition systems, test equipment, and audio signal routing.

The MAX339CEE+ also boasts a high off-isolation of -80dB at 10kHz and crosstalk of -86dB at 10kHz, which is critical for maintaining signal integrity when multiple channels are in use. Additionally, the device's TTL/CMOS-logic-compatible digital inputs provide ease of integration with microcontrollers and other digital systems.

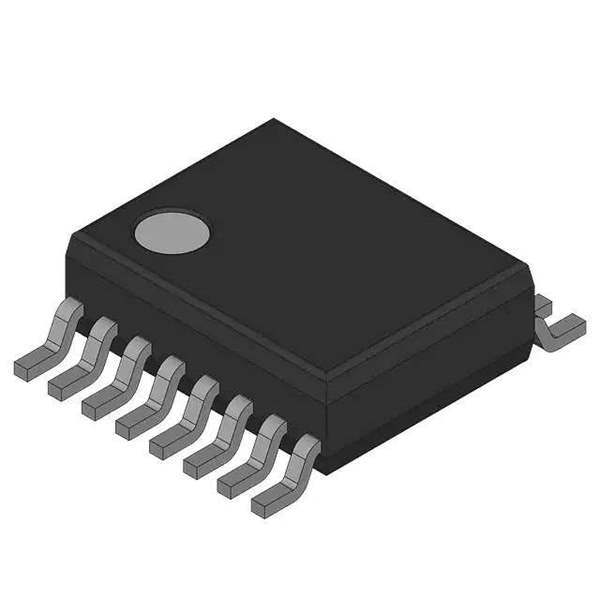

Maxim Integrated has packaged the MAX339CEE+ in a 16-pin QSOP, offering a compact solution that saves valuable board space in densely packed designs. The operating temperature range of the MAX339CEE+ extends from -40°C to +85°C, which ensures stable operation across a wide range of environmental conditions.

In summary, the MAX339CEE+ from Maxim Integrated is a versatile and reliable analog multiplexer that is well-suited for precise signal routing applications. Its robust feature set, including low on-resistance, low charge injection, and high off-isolation, makes it a smart choice for engineers looking to enhance the performance of their analog systems.
