Maxim Integrated DS3231SN Real-Time Clock

The DS3231SN is a high-precision, temperature-compensated real-time clock (RTC) module from Maxim Integrated. This RTC provides an accurate timekeeping solution that is ideal for a wide range of applications in consumer electronics, office automation, and industrial systems where maintaining an accurate time base is crucial.

At the heart of the DS3231SN is an integrated temperature-compensated crystal oscillator (TCXO) and a crystal, which together ensure high accuracy and stability over a wide temperature range. The device maintains an impressive ±2ppm accuracy from -40°C to +85°C, which translates to less than a minute of time deviation per year. This level of precision is essential for applications such as data logging, time-stamping, and long-term monitoring.

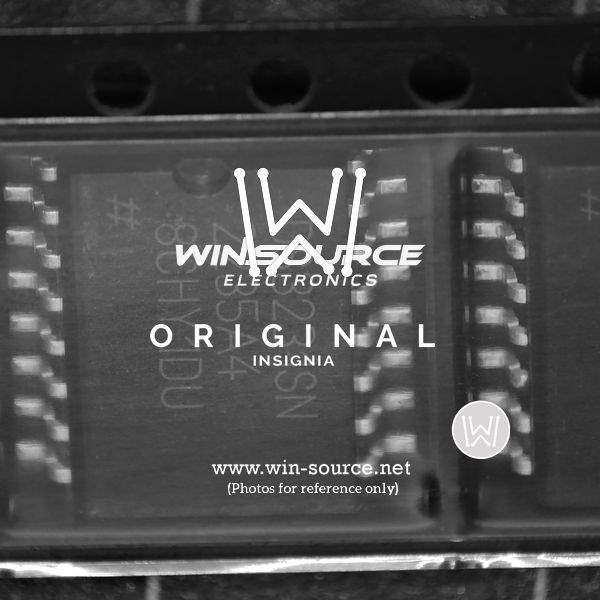

The DS3231SN comes in a compact 16-pin, 300-mil SO package and is designed for simple integration into systems. It operates on a single supply voltage ranging from 2.3V to 5.5V, making it flexible for use in various power environments. Additionally, the device includes a battery input, and maintains accurate timekeeping when main power is interrupted, ensuring continued functionality during power loss events.

One of the standout features of the DS3231SN is its integrated alarms and temperature sensor. The device can be programmed to generate alarms on a schedule set by the user, which can be used to trigger events or wake up a microcontroller from a low-power state. The temperature sensor can be used to monitor the environment or for system diagnostics.

Communication with the DS3231SN is facilitated through an I²C serial interface, allowing for easy integration with most microcontrollers. The register map of the DS3231SN is straightforward, enabling developers to quickly implement the RTC in their designs. Additionally, the device offers a programmable square-wave output, which can be used for various purposes, including as a clock reference for other components in a system.

The DS3231SN from Maxim Integrated is a reliable and accurate timekeeping solution that meets the needs of applications requiring strict timing precision and robust performance across diverse operating conditions.
