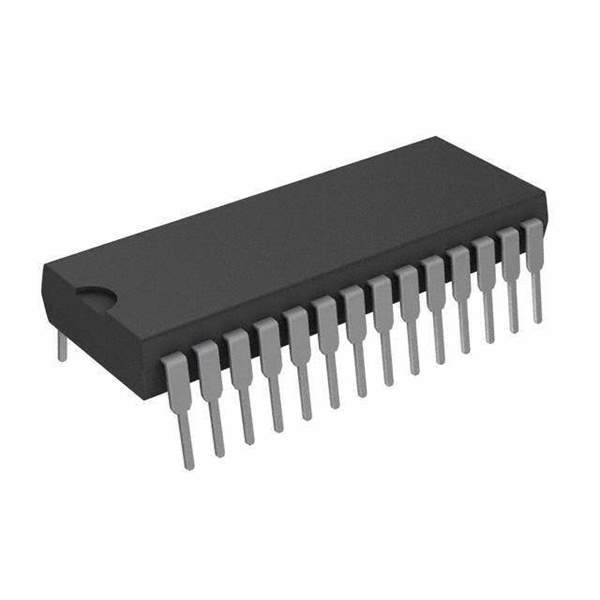

Maxim Integrated DS2132A T1/E1/J1 Short-Haul Transceiver

The DS2132A from Maxim Integrated is a versatile and high-performance single-chip transceiver designed for T1/E1/J1 applications. It is a robust solution for short-haul and intra-office telecom systems, making it an ideal choice for network equipment such as switches, routers, multiplexers, and other telecommunications infrastructure.

The DS2132A integrates line interface, jitter attenuator, and framer functions for T1, E1, or J1 lines into one compact package. This integration simplifies design and reduces board space requirements, making it an efficient option for system designers. The transceiver operates over a wide temperature range, ensuring reliability and performance in various environmental conditions.

Key Features:

• Integrated Line Interface: The DS2132A contains a complete line interface unit (LIU) for direct connection to the line transformer, simplifying the interface design.
• Jitter Attenuation: With an onboard jitter attenuator, the DS2132A can reduce the effects of signal distortion and maintain signal integrity over long distances.
• Flexible Framing Options: The device supports multiple framing formats, including D4, ESF, CEPT, and CRC-4, offering versatility for various communication protocols.
• Programmable Pulse Shapes: It allows for programmable pulse shaping to meet various standards and requirements for T1, E1, and J1 lines.
• Diagnostic Features: The DS2132A includes built-in test capabilities such as loopback modes and a bit error rate tester (BERT) for easy maintenance and troubleshooting.

With its low power consumption and 5V single-supply operation, the DS2132A is a power-efficient choice for telecommunications equipment. Additionally, the transceiver's small footprint in a 28-pin SSOP (Shrink Small Outline Package) allows for more compact hardware designs.

The DS2132A from Maxim Integrated is a reliable and high-quality solution for T1/E1/J1 communications, providing designers with a feature-rich transceiver that meets the stringent requirements of modern telecom networks.
