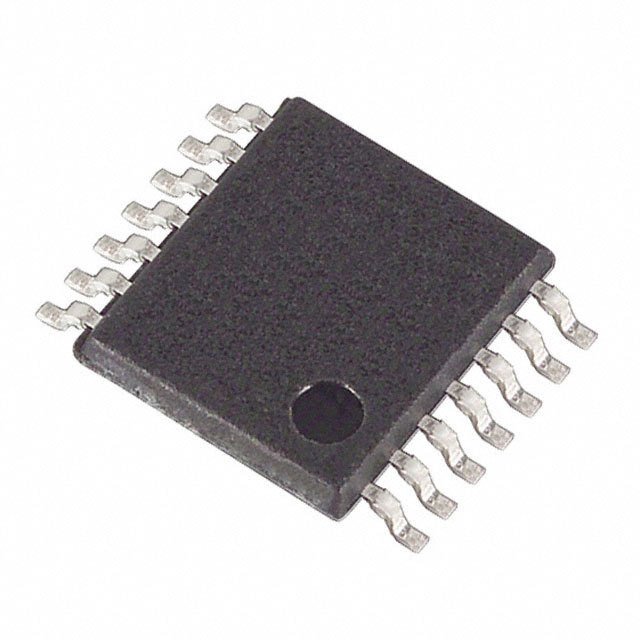

The DS1803E-010+T&R from Maxim Integrated is a versatile, non-volatile digital potentiometer that offers a dual-channel, 10kΩ end-to-end resistance with a linear taper. Designed for applications that require precise digital control of resistance values, this digital potentiometer is commonly used in adjusting volume, contrast, brightness settings, and as a replacement for mechanical potentiometers and trimmers in a variety of electronic circuits.

Key Features

• Resistance: Dual-channel, 10kΩ end-to-end resistance provides flexibility for various applications.
• Interface: The device uses a 2-wire serial interface compatible with I²C for easy integration into a digital system.
• Non-Volatile Memory: Stores the wiper position at power-down, which is then reinstated upon power-up, ensuring consistent performance without the need for recalibration.
• Resolution: Features 100-position wiper adjustments for fine-tuning resistance values with precision.
• Supply Voltage: Operates over a wide supply voltage range from 2.7V to 5.5V, suitable for both 3V and 5V systems.
• Temperature Range: Functions reliably across an extended temperature range from -40°C to +85°C, making it suitable for industrial environments.
• Packaging: Available in a tape and reel (T&R) format for ease of manufacturing and assembly in automated production lines.

Applications

The DS1803E-010+T&R's precision and programmability make it ideal for a wide range of applications, including:

• Volume control in audio systems
• Brightness and contrast adjustments in video and display systems
• Calibration and tuning in communication devices
• Feedback systems requiring variable resistance settings

Maxim Integrated's DS1803E-010+T&R digital potentiometer is a reliable and efficient solution for designers seeking digital control over resistance settings in their electronic designs. Its robust feature set ensures it can be adapted to a multitude of applications, maintaining precision and stability even under adverse conditions.
