Maxim Integrated DS1302S Real-Time Clock Module

The DS1302S is a versatile real-time clock (RTC) module from Maxim Integrated that provides a comprehensive timekeeping solution for a wide array of applications. This compact and power-efficient component is designed to maintain accurate time and date information, ranging from seconds to years, with minimal power consumption, making it ideal for embedded systems, consumer electronics, and portable devices.

One of the key features of the DS1302S is its trickle-charge capability, which allows the module to maintain timekeeping with a small rechargeable battery or a supercapacitor, ensuring continuous operation even when the main power supply is unavailable. This feature is especially useful for applications that require long-term reliability without frequent maintenance.

The DS1302S communicates with a microcontroller via a simple, serial interface. It utilizes a three-wire connection (Clock, Data, and CE) for communication, which reduces the number of I/O pins needed from the host processor. This simplicity in communication makes the DS1302S easy to integrate into existing designs, saving both time and resources during development.

Additionally, the DS1302S offers 31 bytes of battery-backed static RAM, providing a small amount of non-volatile storage that can be used for application-specific data such as system configuration settings or data logging timestamps. This embedded memory feature enhances the utility of the DS1302S beyond mere timekeeping.

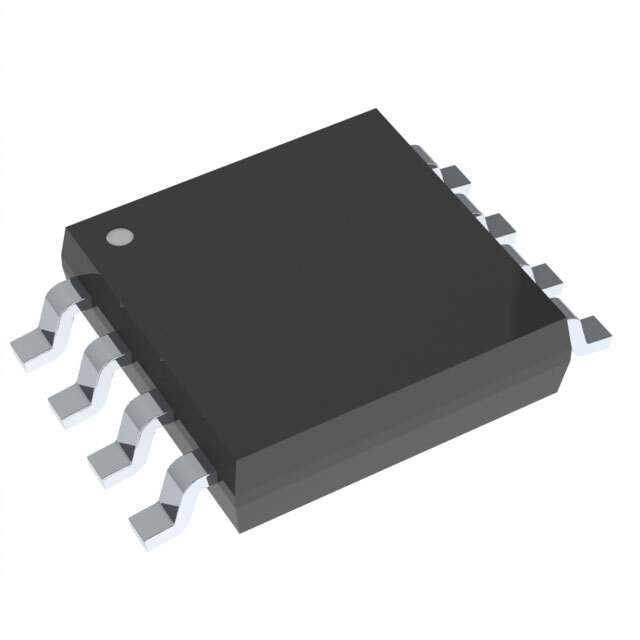

The module is housed in a compact 8-pin SOP (Small Outline Package) footprint, which is conducive to space-constrained applications. Furthermore, the DS1302S is designed for operation over a wide temperature range, making it suitable for use in environments with varying climatic conditions.

Overall, the Maxim Integrated DS1302S real-time clock module is a robust and reliable choice for designers looking to incorporate accurate timekeeping functionality into their projects. Its combination of low power consumption, additional memory, and ease of use makes it a popular choice for a diverse range of applications.
