The Maxim Integrated 73M1902-IM/F is a highly integrated, single-chip modem solution that has been specifically designed to provide a cost-effective, compact, and reliable means of implementing a V.22bis modem for data communication. This product is a testament to Maxim Integrated's commitment to providing advanced communication solutions that cater to a wide range of applications, including point of sale (POS) terminals, utility meters, and industrial control systems.

Key Features

• Comprehensive Modulation Support: The 73M1902-IM/F supports V.22bis, V.22, V.21, Bell 212A, and Bell 103 modulation schemes, ensuring compatibility with a variety of communication standards for versatile use.
• Integrated DAA Interface: The device includes a Direct Access Arrangement (DAA) interface which simplifies the connection to the telephone network while maintaining compliance with global regulatory standards.
• Low Power Consumption: Designed with power efficiency in mind, the 73M1902-IM/F operates with low power consumption, making it ideal for battery-powered and energy-conscious applications.

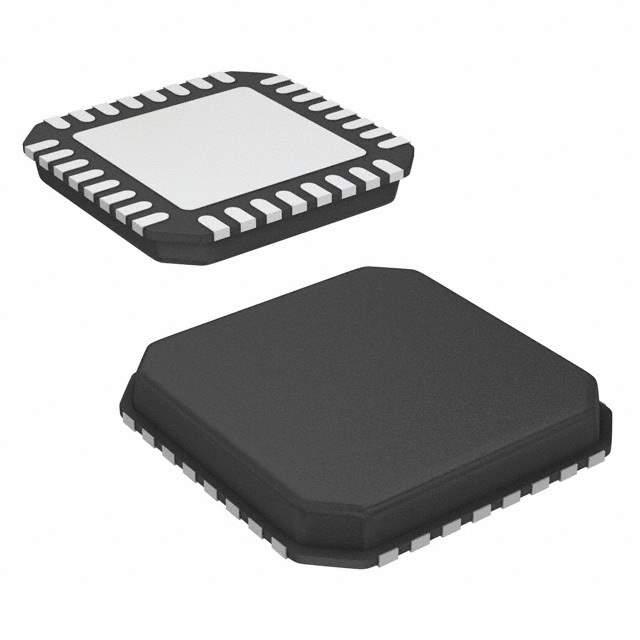

• Compact Form Factor: Available in a small-footprint 32-pin QFN package, the modem chip requires minimal board space, thereby reducing overall product size and cost.
• Integrated Microcontroller Interface: The inclusion of a microcontroller interface allows for easy integration with system-level processors, facilitating straightforward design and implementation.

Applications

The versatility of the 73M1902-IM/F makes it suitable for a range of applications, including but not limited to:

• Point of Sale (POS) Systems
• Utility Metering
• Industrial Control and Automation
• Remote Access Servers
• Security Systems

Technical Specifications

The 73M1902-IM/F operates over a single supply voltage ranging from 3.0V to 3.6V and is specified over the industrial temperature range (-40°C to +85°C). It is compliant with ITU-T standards for modems, ensuring global operability and acceptance.

In summary, the Maxim Integrated 73M1902-IM/F is an all-in-one modem solution that offers exceptional performance, flexibility, and ease of integration for designers looking to add modem capabilities to their products with minimal design complexity and cost.
