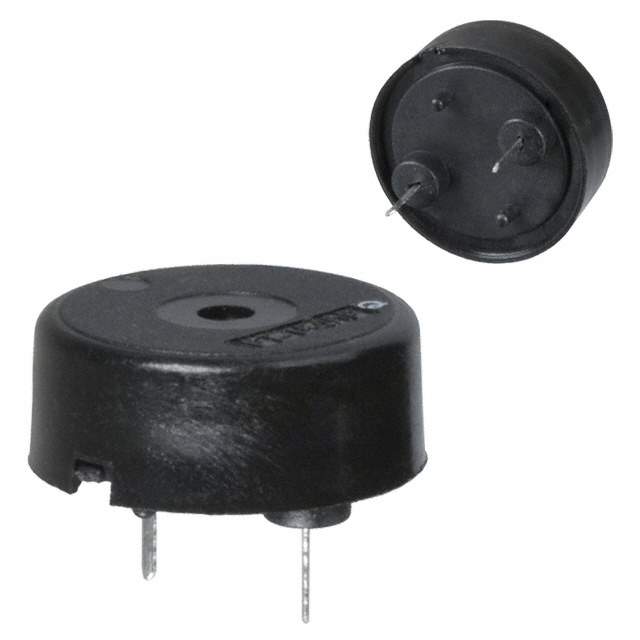

PT-1540PQ Real Image
Same model may have multiple batches, images only for reference.

PT-1540PQ

Part No PT-1540PQ
Manufacturer Mallory Sonalert Products Inc.
Catalog Alarms, Buzzers, and Sirens
Description AUDIO PIEZO TRANSDUCER 1-25V TH / Audio Indicator Piezo 25Vp-p 1.5mA 5Vp-p 85dBA 3500Hz to 4500Hz Through Hole Pin Bulk
Datasheet
PT-1540PQ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Audio Products
Manufacturer Mallory Sonalert Products Inc.
Series PT
Packaging Bulk
Driver Circuitry Transducer, Externally Driven
Input Type peak-peak Signal
Voltage Rating DC 5V
Voltage Range 1 ~ 25V
Frequency 4kHz
Technology Piezo
Operating Mode Single Tone
Sound Pressure Level (SPL) 85dB @ 5V, 10cm
Operating Supply Current 1.5mA
Port Location Top
Operating Temperature Range -20°C ~ 100°C
Mounting Style Through Hole
Termination PC Pins
Dimension 0.669" Dia (17.00mm)
Height - Seated (Maximum) 0.370" (9.40mm)
Win Source Part Number 777793-PT-1540PQ
Popularity Medium
Supply and Demand Status Limited
Quantity per package 1
Family Name PT-1540PQ
Introduction Date September 18, 2006
ECCN EAR99
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian PT-1540PQ CAD Model

Description

The Mallory Sonalert Products Inc. electronic component is an audio product that has a medium popularity and a limited supply and demand status.

  • Frequency: 4kHz
  • Sound Pressure Level (SPL): 85dB @ 5V, 10cm
  • Voltage Range: 1 ~ 25V
  • Voltage Rating DC: 5V
  • Operating Temperature Range: -20°C ~ 100°C
  • Operating Supply Current: 1.5mA
  • Height - Seated (Maximum): 0.370" (9.40mm)
  • Introduction Date: September 18, 2006
  • Estimated EOL Date: 2027
