Same model may have multiple batches, images only for reference.

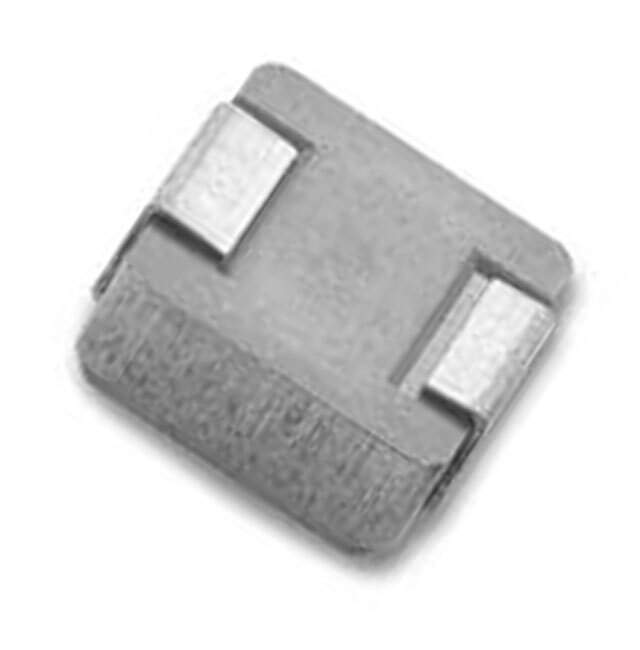

MMD-04BZ-R10M-V1-RU Real Image
Same model may have multiple batches, images only for reference.

MMD-04BZ-R10M-V1-RU

Part No MMD-04BZ-R10M-V1-RU
Manufacturer Mag Layers
Catalog Fixed Inductors
Description FIXED IND 100NH 11A 5 MOHM SMD  /  100 nH Shielded Molded Inductor 11 A 5mOhm Max Nonstandard
Datasheet
MMD-04BZ-R10M-V1-RU Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Mag Layers
Series MMD-04BZ-V1
Package Tape & Reel (TR)
Type Molded
Material - Core Metal
Inductance 100 nH
Tolerance ±20%
Current Rating (Amps) 11 A
Current - Saturation (Isat) 35A
Shielding Shielded
DC Resistance (DCR) 5mOhm Max
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.175" L x 0.160" W (4.45mm x 4.06mm)
Height - Seated (Max) 0.079" (2.00mm)
MSL Level 1 (Unlimited)
REACH Status REACH info available upon request
ECCN EAR99
HTSUS 8504.50.4000
Other Names 2669-MMD-04BZ-R10M-V1-RUTR,MMD-04BZ-R10M-V1
Standard Package 10
Win Source Part Number 1079478-MMD-04BZ-R10M-V1-RU
Ultra Librarian 3D Model Ultra Librarian MMD-04BZ-R10M-V1-RU CAD Model

Description

The MMD-04BZ-R10M-V1-RU is a fixed inductor with a shielded feature and an inductance of 100 nH.

  • Series: MMD-04BZ-V1
  • Type: Molded
  • Win Source Part Number: 1079478
  • Package: Tape and Reel
  • Height: 0.079" (2.00mm)
  • Mounting: SMD (SMT)
  • Tolerance: ±20%
  • Core Material: Metal
  • Package/Case: Non-standard
  • Supplier Device Package: -
  • Temperature Range: -55°C to 125°C
  • Current Rating: 11 A.50.4000
