Same model may have multiple batches, images only for reference.

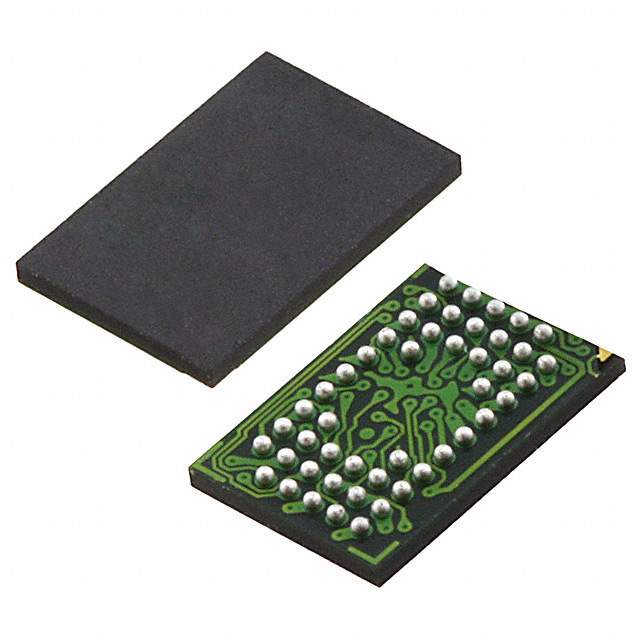

MX29LV800CTXHI-70G Real Image
Same model may have multiple batches, images only for reference.

MX29LV800CTXHI-70G

Part No MX29LV800CTXHI-70G
Manufacturer Macronix
Catalog Flash
Description 8M-BIT [1Mx8/512K x16] CMOS SINGLE VOLTAGE 3V ONLY FLASH MEMORY
Datasheet
MX29LV800CTXHI-70G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Macronix
Series MX29LV
Packaging Tray
Memory Type Non-Volatile
Memory Format FLASH
Technology FLASH - NOR
Memory Size 8Mb (1M x 8)
Write Cycle Time - Word, Page 70ns
Access Time 70ns
Memory Interface Parallel
Operating Supply Voltage 2.7 V ~ 3.6 V
Operating Temperature Range -40°C ~ 85°C (TA)
Mounting SMD
Package 48-WFBGA, CSPBGA
Manufacturer Package 48-WFBGA, CSP (4x6)
Manufacturer Homepage www.macronix.com
Win Source Part Number 740368-MX29LV800CTXHI-70G
Popularity Medium
Supply and Demand Status Balance
Family Name MX29LV800CT
ECCN EAR99
Country of Origin Taiwan
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian MX29LV800CTXHI-70G CAD Model

Description

The Macronix MX29LV800CTXHI-70G is a flash memory chip that provides reliable and high-performance storage capabilities. It is part of the MX29LV series and is available in a tray packaging.

  • Operating Temperature: -40°C to 85°C (TA)
  • Memory Size: 8Mb (1M x 8)
  • Access Time: 70ns
  • Manufacturer: Macronix
  • Supply and Demand Status: Balanced
  • Memory Interface: Parallel
  • Packaging: 48-WFBGA, CSPBGA
