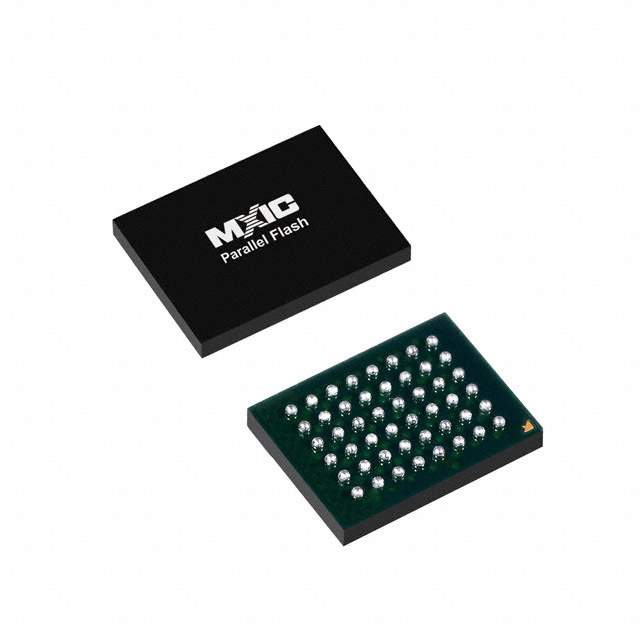

MX29LV640EBXEI-70G Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Macronix
Packaging Tray
Status Active
Memory Format FLASH
Technology FLASH - NOR
Memory Size 64Mb (8M x 8)
Access Time 70ns
Supply Voltage - Operating 2.7 V to 3.6 V
Temperature Range - Operating -40°C to 85°C (TA)
Mounting SMD (SMT)
Case / Package 48-LFBGA, CSP (6x8)
Win Source Part Number 059748-MX29LV640EBXEI-70G
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Quantity per package 480
Family Name MX29LV640EBXEI
Introduction Date October 20, 2008
ECCN 3A991.b.1.a
Country of Origin Taiwan
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian MX29LV640EBXEI-70G CAD Model

Description

The Macronix MX29LV640EBXEI-70G is a 64Mb (8M x 8) NOR Flash memory chip, designed for use in a variety of electronic devices.

  • Access time: 70ns
  • Supply voltage range: 2.7V to 3.6V
  • Case/Package: 48-LFBGA, CSP (6x8)
  • Operating Temperature: -40°C to 85°C (TA)
  • Popularity: high
  • Supply and demand status: limited
  • Alternative parts: S29JL064J70BHI003, S29JL064J70BHI000, S29GL064N90BFI040, and S29GL064N90BAI040
