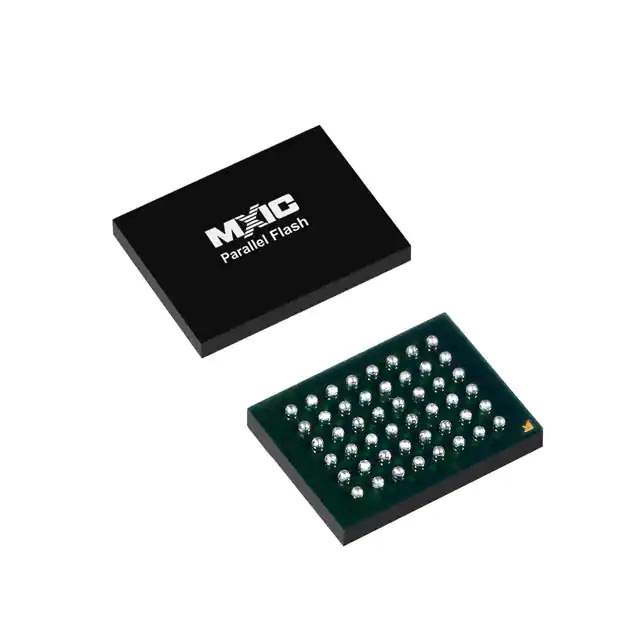

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Memory - Memory
Mfr Macronix
Series MX29GL
Package Tray
Product Status Active
Programmable Not Verified
Memory Type Non-Volatile
Memory Format FLASH
Technology FLASH - NOR
Memory Size 32Mbit
Memory Organization 4M x 8
Memory Interface Parallel
Write Cycle Time - Word, Page 70ns
Access Time 70 ns
Voltage - Supply 2.7V ~ 3.6V
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 48-LFBGA, CSPBGA
Supplier Device Package 48-LFBGA, CSP (6x8)
Base Product Number MX29GL320
Standard Package 480 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991B1A
HTSUS 8542.32.0071
Win Source Part Number 646179-MX29GL320EBXEI-70G
Ultra Librarian 3D Model Ultra Librarian MX29GL320EBXEI-70G CAD Model

Description

The Macronix MX29GL320EBXEI-70G is a 32Mbit FLASH - NOR memory integrated circuit (IC).

  • Manufacturer: Macronix
  • Memory Type: FLASH - NOR
  • Voltage Supply: 2.7V to 3.6V
  • Memory Size: 32Mbit
  • Access Time: 70 ns
  • Programmable: Yes
  • Memory Interface: Parallel
  • Mounting Type: Surface Mount
  • Package: 48-LFBGA, CSPBGA
  • Operating Temperature: -40°C to 85°C
  • Write Cycle Time: 70ns
  • Series: MX29GL
  • Status: Active
  • Memory Organization: 4M x 8
