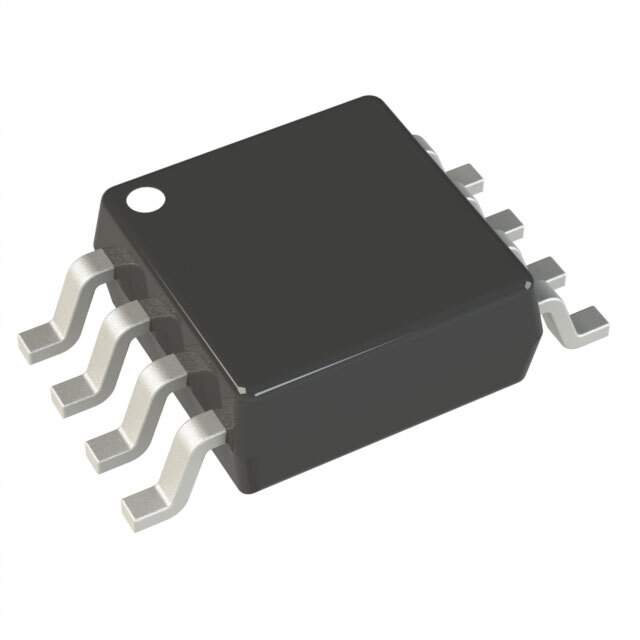

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Manufacturer Macronix
Packaging Tube
Memory Type Non-Volatile
Memory Format FLASH
Technology FLASH - NOR
Memory Size 16Mb (2M x 8)
Memory Interface SPI
Clock Frequency 80MHz
Write Cycle Time - Word, Page 100μs, 4ms
Supply Voltage (V) 2.3V ~ 3.6V
Temperature Range - Operating -40°C ~ 85°C
Mounting Style SMD
Manufacturer Package 8-SOIC (0.209", 5.30mm Width)
Supplier Device Package 8-SOP
Manufacturer Pack Quantity 92
MSL Level 3 (168 Hours)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 804209-MX25V1635FM2I
Ultra Librarian 3D Model Ultra Librarian MX25V1635FM2I CAD Model

Description

The MX25V1635FM2I is a 16Mb (2M x 8) non-volatile FLASH-NOR memory IC that operates between -40°C to 85°C from Macronix.

  • Memory Interface: SPI
  • Clock Frequency: 80MHz
  • Package: 8-SOP
  • Write Cycle Time (Word): 100μs
  • Write Cycle Time (Page): 4ms
