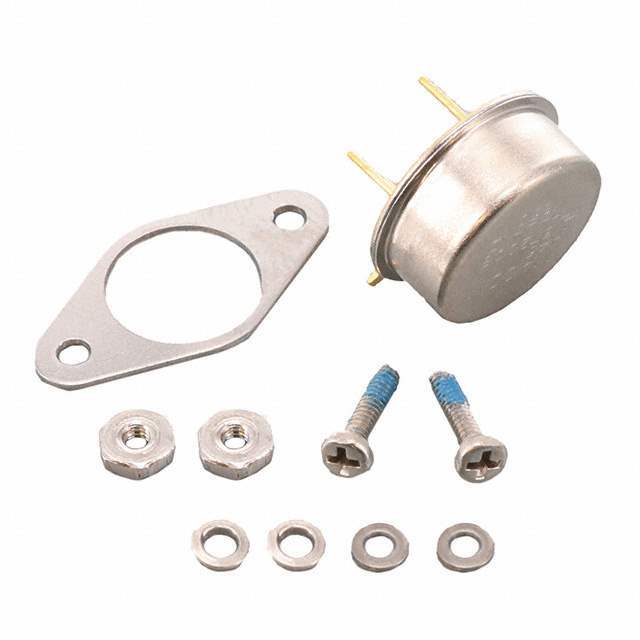

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Package Tray
Product Status Active
Frequency 10MHz ~ 550MHz
P1dB 14.3dBm
Gain 29dB
Noise Figure 2.3dB
RF Type General Purpose
Voltage - Supply 15V
Current - Supply 45mA
Test Frequency 10MHz ~ 550MHz
Grade -
Package / Case TO-8 Style, 4 Lead
Supplier Device Package TO-8
Ultra Librarian 3D Model Ultra Librarian A80 CAD Model

Description

The A80 RF amplifier is a discrete hybrid design, which uses thin film manufacturing processes for accurate performance and high reliability.The 2 stage silicon bipolar feedback amplifier design displays impressive performance over a broadband frequency range. An isolation transformer is used in the feedback loop, with the benefit of high reverse isolation.
