MASW-007107-TR

Part No MASW-007107-TR
Manufacturer M/A-Com Technology Solutions
Catalog RF Switches
Description SWITCH SPDT 5300MHZ 8DFN
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer M/A-Com Technology Solutions
Packaging Reel
Part Status Active
Frequency - Lower DC
Frequency - Upper 8GHz
Isolation @ Frequency 20dB @ 8GHz (typ)
Insertion Loss @ Frequency 0.75dB @ 8GHz
Topology Reflective
Circuit SPDT
P1dB 27dBm
Impedance 50 Ohm
Temperature Range - Operating -40°C ~ 85°C
RF Type WLAN

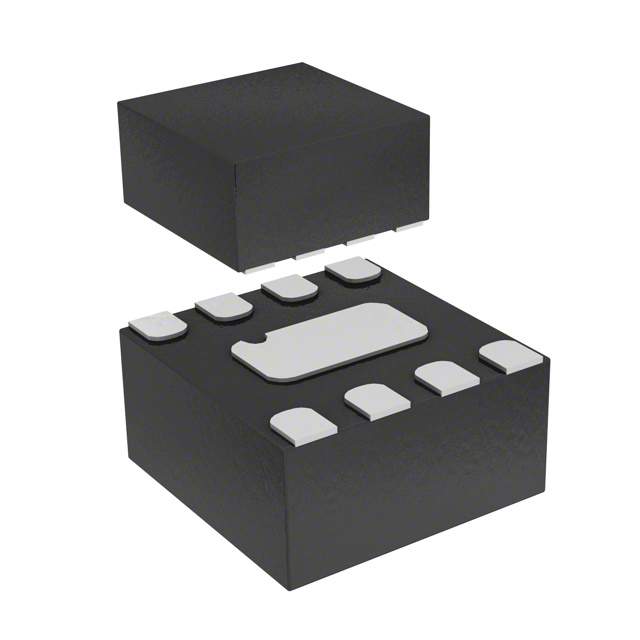

Case 8-VFDFN Exposed Pad
Supplier Device Package 8-PDFN (2x2)
Win Source Part Number MASW-007107-TR3000-207769
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian MASW-007107-TR CAD Model

Description

MASW-007107-TR from M/A-Com Technology Solutions is an RF switch component designed for signal routing in wireless, test, and high-frequency electronic systems. Devices in this category are commonly selected for switching paths in RF front ends, instrumentation, communications hardware, and other designs where controlled signal flow is essential. For engineers and sourcing teams, this part is relevant when evaluating compact RF signal-chain components from a well-known supplier in the microwave and RF market. Because exact technical specifications were not provided here, design teams should confirm electrical performance, package details, and qualification data directly from the official datasheet before release to production. Lifecycle status for MASW-007107-TR is currently listed as information not available, so procurement teams should review current manufacturer guidance and distributor inventory before committing to long-term builds. RoHS compliance information is also not available in the provided data and should be verified through manufacturer documentation or an authorized source before use in regulated programs.
