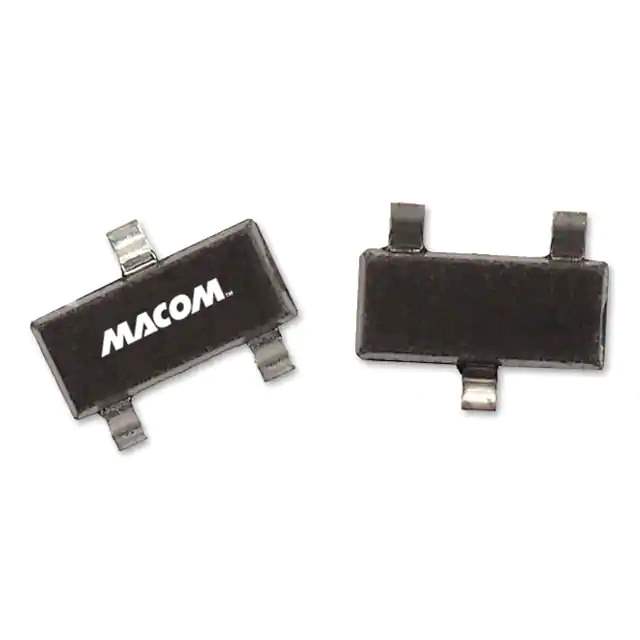

MADP-007448-0287BT Real Image
Same model may have multiple batches, images only for reference.

MADP-007448-0287BT

Part No MADP-007448-0287BT
Manufacturer M/A-Com Technology Solutions
Catalog RF Diodes
Description DIODE,PIN,PLASTIC,ST,LEADFREE
Datasheet
MADP-007448-0287BT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - RF Diodes
Mfr M/A-Com Technology Solutions
Series SMPP
Package Tape & Reel
Product Status Active
Diode Type PIN - 1 Pair Series Connection
Voltage - Peak Reverse (Max) 100V
Current - Max 150 mA
Capacitance @ Vr, F 0.25pF @ 50V, 1MHz
Resistance @ If, F 2Ohm @ 10mA, 100MHz
Power Dissipation (Max) 250 mW
Temperature Range - Operating 175°C (TJ)
Package / Case TO-236-3, SC-59, SOT-23-3
Supplier Device Package SOT-23
Base Product Number MADP-007448
Standard Package 3,000 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0060
Win Source Part Number 732383-MADP-007448-0287BT
Ultra Librarian 3D Model Ultra Librarian MADP-007448-0287BT CAD Model

Description

The 732383-MADP-007448-0287BT is a RF diode designed for use in discrete semiconductor products.

  • Maximum Current Rating: 150 mA
  • Operating Voltage: Operates @ a voltage of up to 100V
  • Power Dissipation: 250 mW
  • Capacitance: 0.25pF @ 50V and 1MHz
  • Resistance: Low resistance of 2 Ohm @ 10mA and 100MHz
  • Package: TO-236-3, SC-59, SOT-23-3 package
  • Suitability: Suitable for surface mount applications.
  • Operating Temperature: Can operate @ a temperature of up to 175°C.
  • Manufacturer: M/A-Com Technology Solutions
  • Status: Currently active in the market
  • Series: Part of the MADP-007448 series.
