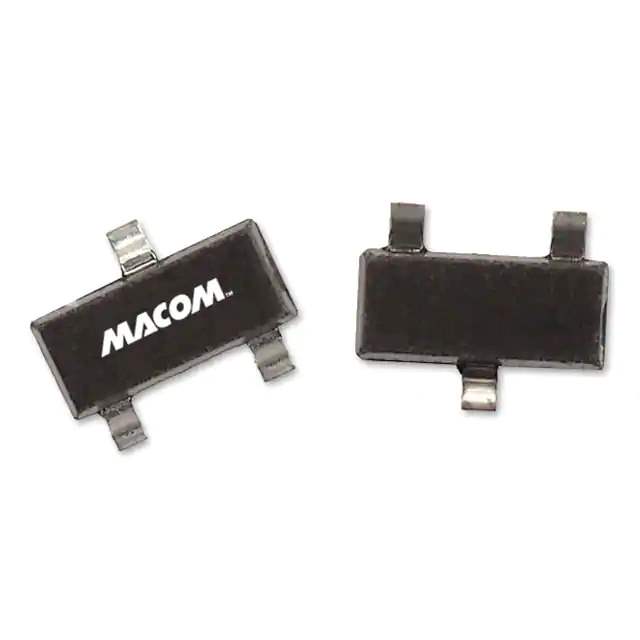

MADP-007438-0287BT Real Image
Same model may have multiple batches, images only for reference.

MADP-007438-0287BT

Part No MADP-007438-0287BT
Manufacturer M/A-Com Technology Solutions
Catalog RF Diodes
Description DIODE,PIN,PLASTIC,ST,LEADFREE
Datasheet
MADP-007438-0287BT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - RF Diodes
Mfr M/A-Com Technology Solutions
Series SMPP
Package Tape & Reel
Product Status Active
Diode Type PIN - 1 Pair Series Connection
Voltage - Peak Reverse (Max) 200V
Current - Max 150 mA
Capacitance @ Vr, F 0.35pF @ 50V, 1MHz
Resistance @ If, F 10Ohm @ 10mA, 100MHz
Power Dissipation (Max) 250 mW
Temperature Range - Operating 175°C (TJ)
Package / Case TO-236-3, SC-59, SOT-23-3
Supplier Device Package SOT-23
Base Product Number MADP-007438
Standard Package 3,000 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0070
Win Source Part Number 739747-MADP-007438-0287BT
Ultra Librarian 3D Model Ultra Librarian MADP-007438-0287BT CAD Model

Description

The 739747-MADP-007438-0287BT is a high-performance RF diode suitable for a wide range of applications by M/A-Com Technology Solutions.

  • Series: SMPP
  • Maximum Current: 150 mA
  • Diode Type: PIN - 1 Pair Series Connection
  • Capacitance: 0.35pF @ 50V and 1MHz
  • Maximum Peak Reverse Voltage: 200V
  • Power Dissipation: 250 mW
  • Package Type: TO-236-3, SC-59, SOT-23-3
  • Package: Tape and reel
  • Status: Active
  • Standard Package: 3,000 pieces
