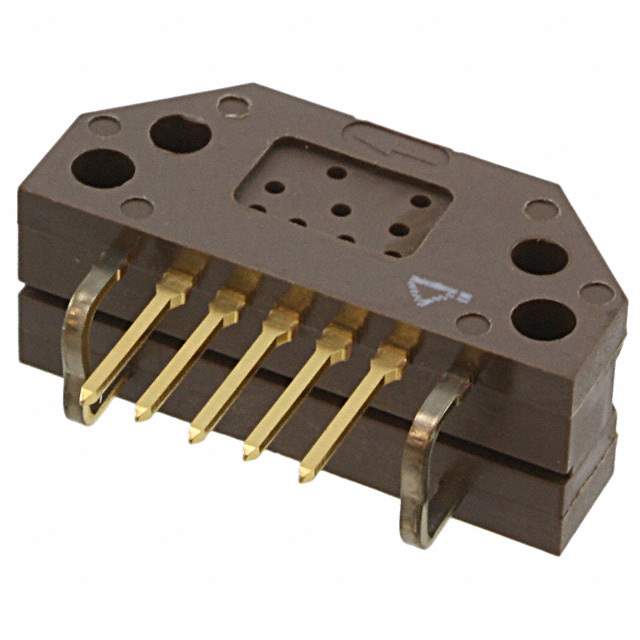

HEDS-9140#F00 Real Image
Same model may have multiple batches, images only for reference.

HEDS-9140#F00

Part No HEDS-9140#F00
Manufacturer Broadcom Limited
Catalog Encoders
Description ROTARY ENCODER OPTICAL 256PPR
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Broadcom Limited
Encoder Type Optical
Output Type Quadrature with Index (Incremental)
Pulses per Revolution 256
Supply Voltage (V) 5V
Actuator Type Codewheel Not Included
Detent No
Built in Switch No
Mounting Style Chassis Mount
Orientation Vertical
Termination Style Terminal Pins
Manufacturer Pack Quantity 100
MSL Level 1 (Unlimited)
Win Source Part Number 714345-HEDS-9140#F00
Popularity Low
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian HEDS-9140#F00 CAD Model

Description

The Broadcom Limited 714345-HEDS-9140#F00 is an optical encoder with a quadrature output type.

  • Supply Voltage: 5V
  • Pulse per Revolution: 256
  • Mounting: chassis
  • Orientation: vertical
  • Built-in Switch: No
  • Encoder Type: optical
  • Supply and Demand Status: balanced
  • Manufacturer Pack Quantity: 100
  • MSL Level: 1 (Unlimited)
