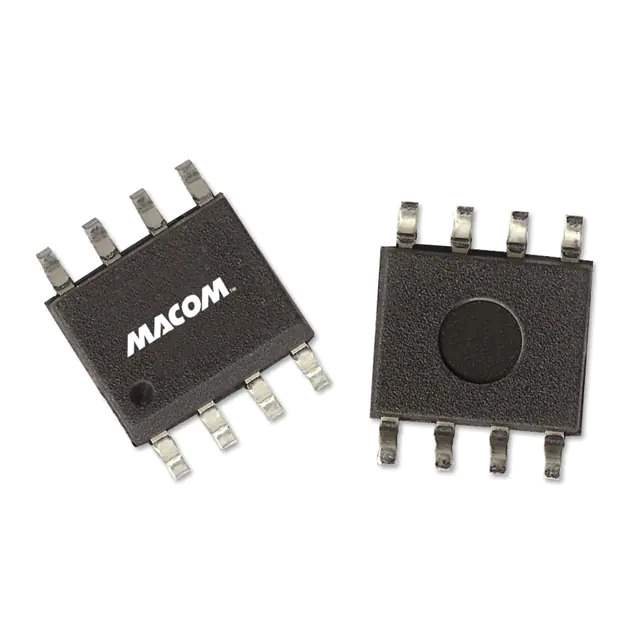

MACPCC0001 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category RF and Wireless - RF Directional Coupler
Mfr M/A-Com Technology Solutions
Package Tube
Product Status Active
Coupler Type Standard
Frequency 1.7GHz ~ 2GHz
Coupling Factor 17 ± 2dB
Applications General Purpose
Insertion Loss 0.3dB
Power - Max 2W
Package / Case 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package 8-SOIC
Standard Package 100 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8543.70.9860
Win Source Part Number 629038-MACPCC0001
Ultra Librarian 3D Model Ultra Librarian MACPCC0001 CAD Model

Description

The 629038-MACPCC0001 is an RF directional coupler designed for general purpose applications. Manufactured by M/A-Com Technology Solutions, this RF directional coupler is currently active in the market.

  • Maximum Power: 2W
  • Frequency Range: 1.7GHz to 2GHz
  • Coupling Factor: 17 ± 2dB
  • Insertion Loss: 0.3dB
  • Package: 8-SOIC
