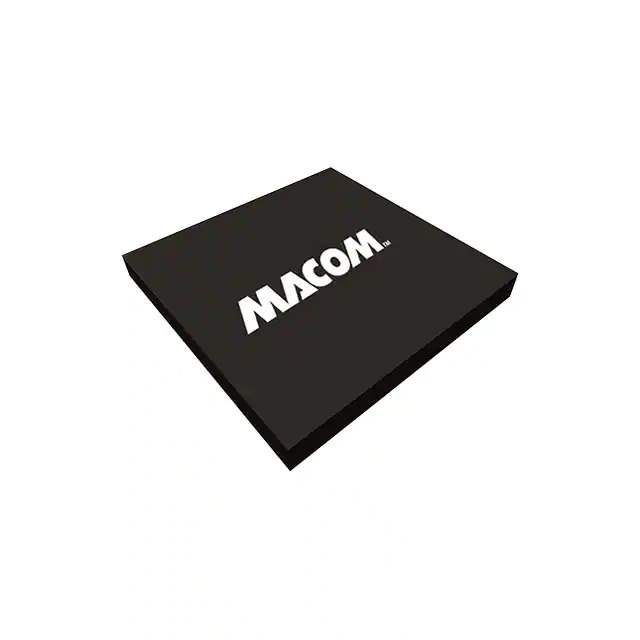

MA4SW510 Real Image
Same model may have multiple batches, images only for reference.

MA4SW510

Part No MA4SW510
Manufacturer M/A-Com Technology Solutions
Catalog RF Switches
Description IC RF SWITCH SP5T 20GHZ DIE
Datasheet
MA4SW510 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Switches
Mfr M/A-Com Technology Solutions
Series HMIC™
Package Tray
Product Status Active
RF Type General Purpose
Circuit SP5T
Frequency Range 50MHz ~ 20GHz
Isolation 38dB
Insertion Loss 0.9dB
Test Frequency 18GHz
Temperature Range - Operating -65°C ~ 125°C
Package / Case Die
Supplier Device Package Die
Standard Package 50 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0060
Win Source Part Number 628786-MA4SW510
Ultra Librarian 3D Model Ultra Librarian MA4SW510 CAD Model

Description

The MA4SW510 is a general purpose RF switch with a frequency range of 50MHz to 20GHz.

  • Circuit: SP5T
  • Insertion Loss: 0.9dB
  • Isolation: 38dB
  • Package: tray
  • Standard Package: 50 pcs
  • Series: HMIC™
  • Manufacturer: M/A-Com Technology Solutions
  • Status: active
  • ECCN: EAR99
  • HTSUS Code: 8541.10.0060
