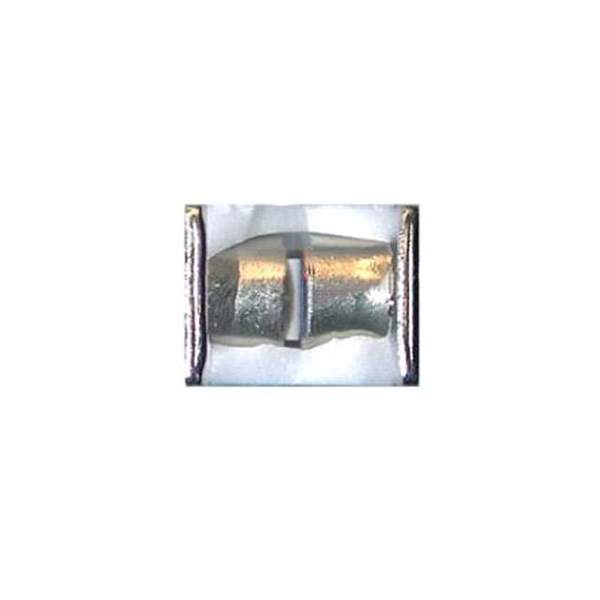

MA4P7418-1072T Real Image
Same model may have multiple batches, images only for reference.

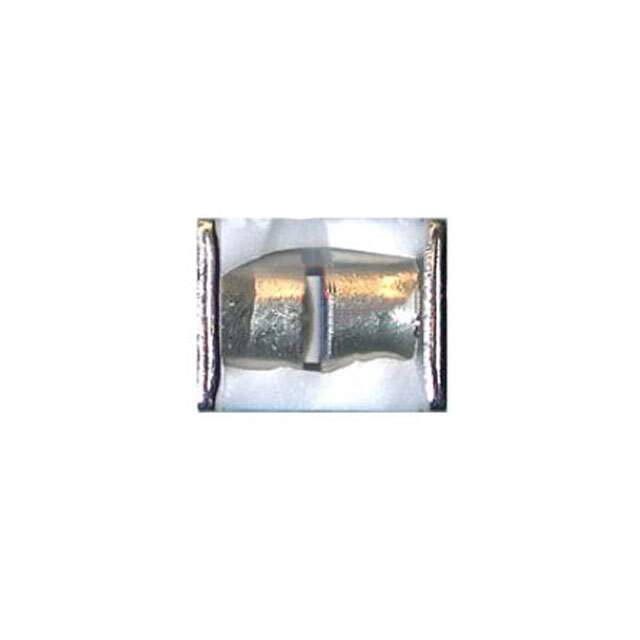

MA4P7418-1072T

Part No MA4P7418-1072T
Manufacturer M/A-Com Technology Solutions
Catalog RF Diodes
Description SQML, PIN / RF Diode PIN - Single 1100V 150 mA 11.5 W 1072 MELF
Datasheet
MA4P7418-1072T Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - RF
Mfr MACOM Technology Solutions
Package Tape & Reel
Diode Type PIN - Single
Voltage - Peak Reverse (Max) 1100V
Current - Max 150 mA
Capacitance @ Vr, F 0.8pF @ 100V, 100MHz
Resistance @ If, F 1.2Ohm @ 100mA, 100MHz
Power Dissipation (Max) 11.5 W
Temperature Range - Operating 175°C (TJ)
Package / Case 2-SMD
Supplier Device Package 1072 MELF
Base Product Number MA4P7418
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0060
Other Names 1465-MA4P7418-1072TCT,1465-MA4P7418-1072TDKR,1465-MA4P7418-1072TTR
Standard Package 1,500
Win Source Part Number 1074662-MA4P7418-1072T
Ultra Librarian 3D Model Ultra Librarian MA4P7418-1072T CAD Model

Description

The MA4P7418-1072T RF Diode from MACOM Technology Solutions is a PIN-single type diode that has a capacitance of 0.8pF @ 100V and 100MHz.

  • Voltage Peak Reverse: 1100V
  • Maximum Power Dissipation: 11.5W
  • Resistance: 1.2Ohm @ 100mA and 100MHz
  • Package: 2-SMD
  • Choice for: applications requiring a diode with high voltage peak reverse and low resistance
