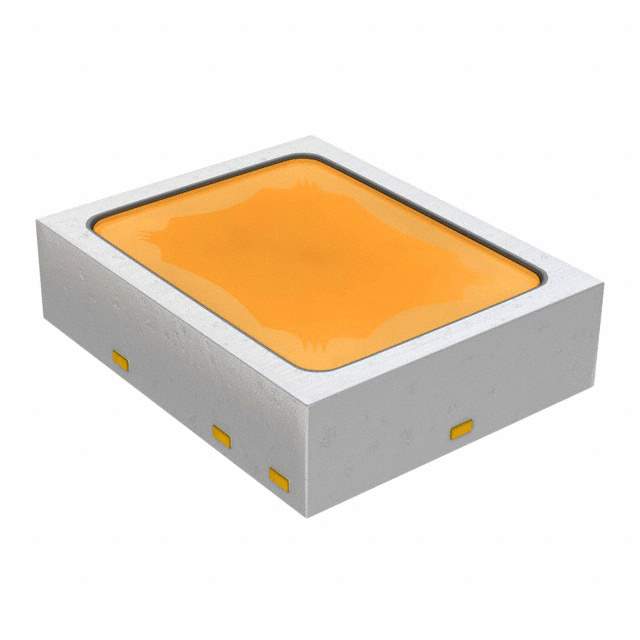

MP-2016-1100-50-70 Real Image
Same model may have multiple batches, images only for reference.

MP-2016-1100-50-70

Part No MP-2016-1100-50-70
Manufacturer Luminus Devices Inc.
Catalog LED Lighting - White
Description LED XNOVA COOL WHITE 5000K 0806
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Luminus Devices Inc.
Packaging Reel
Color White, Cool
CCT (K) 5000K (Typ)
Flux at 25°C, Current - Test 27lm (Typ)
Current - Test 60mA
Voltage - Forward (Vf) (Typ) 3V
Lumens/Watt at Current - Test 150 lm/W
CRI (Color Rendering Index) 70
Current - Max 120mA
Viewing Angle 110°
Mounting Style SMD
Manufacturer Package 0806 (2016 Metric)
Supplier Device Package 2016
Dimension 0.079" L x 0.063" W
Height - Seated (Maximum) 0.020" (0.52mm)
Thermal Resistance of Package 35°C/W
Manufacturer Pack Quantity 5,000
MSL Level 3 (168 Hours)
Popularity High
Supply and Demand Status Sufficient
Win Source Part Number 801358-MP-2016-1100-50-70
Ultra Librarian 3D Model Ultra Librarian MP-2016-1100-50-70 CAD Model

Description

The MP-2016-1100-50-70 is a cool white SMD LED from Luminus Devices Inc.

  • Maximum Current: 120mA
  • Forward Voltage: 3V
  • Viewing Angle: 110°
  • CCT (K): 5000K (Typ)
  • CRI (Color Rendering Index): 70
  • Thermal Resistance: 35°C/W
  • Packaging: Reel
  • Supplier Device Package: 2016
  • Dimensions: 0.079" L x 0.063" W
  • Height-Seated (Maximum): 0.020" (0.52mm)
  • Flux @ 25°C, Current - Test: 27lm (Typ)
  • Lumens/Watt @ Current-Test: 150 lm/W
