Same model may have multiple batches, images only for reference.

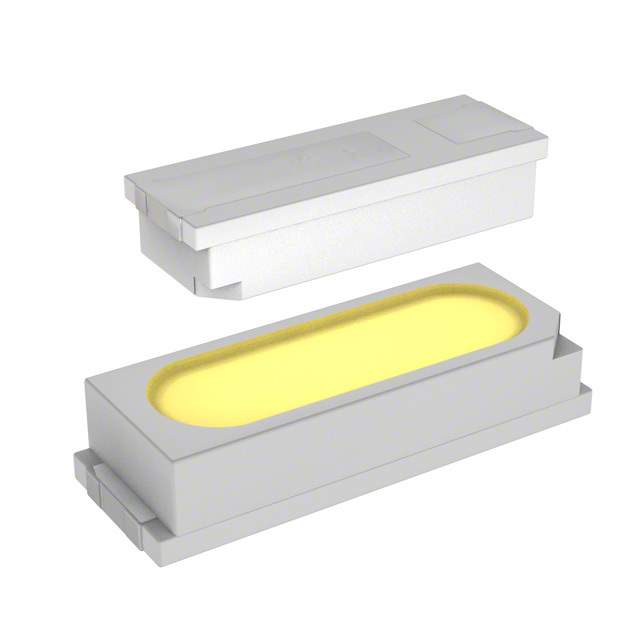

MXZ9-PW30-0000 Real Image
Same model may have multiple batches, images only for reference.

MXZ9-PW30-0000

Part No MXZ9-PW30-0000
Manufacturer Lumileds
Catalog LED Lighting - White
Description LED LUXEON WARM WHITE 3000K 2SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Lumileds
Packaging Reel
Part Status Obsolete (End Of Life)
Color White, Warm
CCT (K) 3000K
Flux at 25°C, Current - Test 9lm (Typ)
Current - Test 30mA
Voltage - Forward (Vf) (Typ) 2.9V
Lumens/Watt at Current - Test 103 lm/W
CRI (Color Rendering Index) 90
Current - Max 90mA
Mounting Style SMD
Manufacturer Package 1606 (4014 Metric)
Supplier Device Package 4014
Dimension 0.157" L x 0.055" W (4.00mm x 1.40mm)
Height - Seated (Maximum) 0.80mm
Thermal Resistance of Package 45°C/W
Manufacturer Pack Quantity 3,000
MSL Level 2 (1 Year)
Popularity High
Supply and Demand Status Sufficient
Win Source Part Number 800508-MXZ9-PW30-0000
Ultra Librarian 3D Model Ultra Librarian MXZ9-PW30-0000 CAD Model

Description

The Lumileds 800508-MXZ9-PW30-0000 is an electronic component product.

  • Color: White, Warm
  • Maximum Current: 90mA
  • Voltage Forward (Vf): 2.9V
  • Current Test: 30mA
  • CCT: 3000K
  • CRI: 90
  • Thermal Resistance of Package: 45 degrees Celsius per watt
