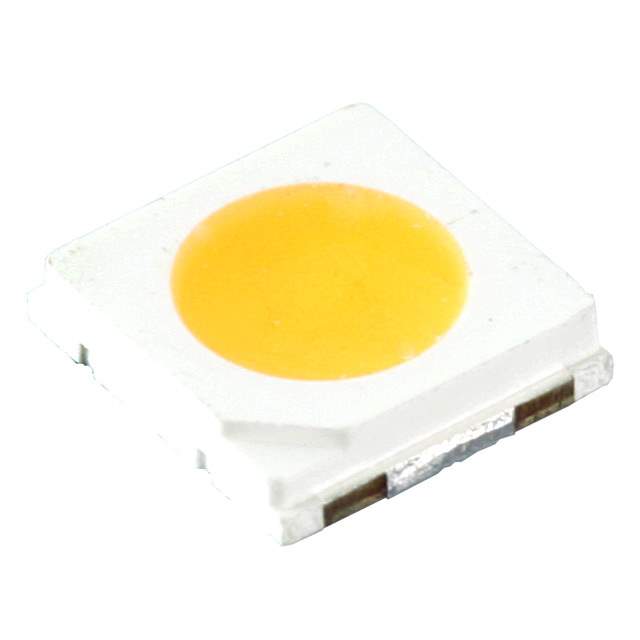

MXA9-PW35-0000 Real Image

Same model may have multiple batches, images only for reference.

MXA9-PW35-0000 Real Image

Same model may have multiple batches, images only for reference.

MXA9-PW35-0000

Get a Quote

Part No	MXA9-PW35-0000
Manufacturer	Lumileds
Catalog	LED Lighting - White
Description	LED LUXEON WARM WHITE 3500K 2SMD / LED Lighting series White, Warm 3500K 3.05V 100mA 115° 1414 (3535 Metric)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Optoelectronics>LED Lighting - White
Mfr	Lumileds
Series	LUXEON 3535L
Package	Tape & Reel
Color	White, Warm
CCT (K)	3500K
Flux @ 25°C, Current - Test	33lm (Typ)
Current - Test	100mA
Voltage - Forward (Vf) (Typ)	3.05V
Lumens/Watt @ Current - Test	108 lm/W
CRI (Color Rendering Index)	90
Current - Max	200mA
Viewing Angle	115°
Mounting	SMD (SMT)
Package / Case	1414 (3535 Metric)
Supplier Device Package	3535
Dimension	0.138" L x 0.134" W (3.50mm x 3.40mm)
Height - Seated (Max)	0.031" (0.80mm)
Thermal Resistance of Package	18°C/W
Base Product Number	MXA9-PW35
MSL Level	2 (1 Year)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.41.0000
Other Names	1416-1448-6,MXA9-PW35-0000-ND,1416-1448-2,1416-1448-1
Standard Package	5,000
Win Source Part Number	1081317-MXA9-PW35-0000
Ultra Librarian 3D Model	Ultra Librarian MXA9-PW35-0000 CAD Model

Alternative Products

Description

The LUXEON 3535L series from Lumileds offers a high-quality LED package for use in white optoelectronics.

Model: 1081317-MXA9-PW35-0000
Mounting Type: SMD
Maximum Current: 200mA
Viewing Angle: 115 degrees
Height: 0.80mm
Dimension: 0.138" L x 0.134" W
Color Temperature: 3500K
CRI: 90
Thermal Resistance: 18 degrees Celsius per watt
Packaging: Tape and Reel
Standard Package: 5000 units
