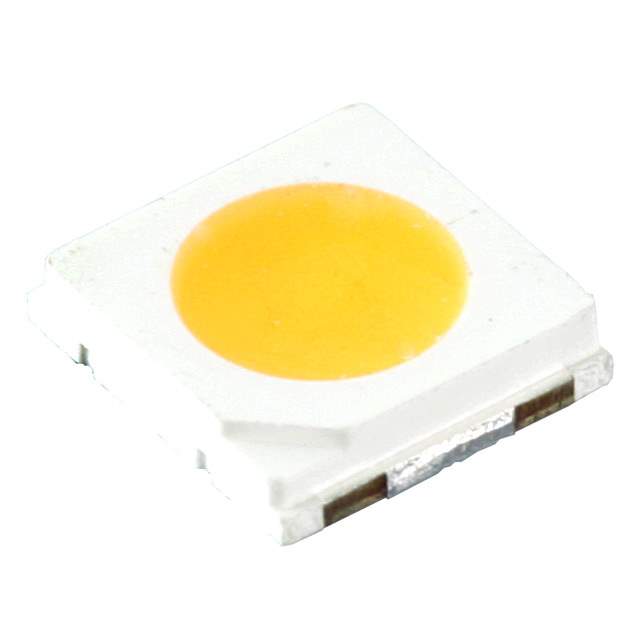

MXA8-PW22-H001 Real Image
Same model may have multiple batches, images only for reference.

MXA8-PW22-H001

Part No MXA8-PW22-H001
Manufacturer Lumileds
Catalog LED Lighting - White
Description LED LUXEON WARM WHITE 2200K 2SMD / LED Lighting series White, Warm 2200K 2.9V 100mA 115° 1414 (3535 Metric)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - White
Mfr Lumileds
Series LUXEON 3535L
Package Tape & Reel
Color White, Warm
CCT (K) 2200K
Flux @ 25°C, Current - Test 35lm (Typ)
Current - Test 100mA
Voltage - Forward (Vf) (Typ) 2.9V
Lumens/Watt @ Current - Test 121 lm/W
CRI (Color Rendering Index) 80
Current - Max 300mA
Viewing Angle 115°
Mounting SMD (SMT)
Package / Case 1414 (3535 Metric)
Supplier Device Package 3535
Dimension 0.138" L x 0.134" W (3.50mm x 3.40mm)
Height - Seated (Max) 0.031" (0.80mm)
Thermal Resistance of Package 18°C/W
Base Product Number MXA8-PW22
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names 1416-1511-6,1416-1511-1,1416-1511-2
Standard Package 5,000
Win Source Part Number 1123149-MXA8-PW22-H001
Ultra Librarian 3D Model Ultra Librarian MXA8-PW22-H001 CAD Model

Description

The LUXEON 3535L Warm White LED is a high-performance component for optoelectronics and LED lighting applications.

  • Viewing Angle: 115 degrees
  • Forward Voltage: 2.9V
  • Maximum Current: 300mA
  • Color Rendering Index: 80
  • Thermal Resistance: 18 degrees Celsius per watt
  • Package: 1414 (3535 Metric) SMD
  • Standard Package: 5,000 units
  • Luminous Flux: 35lm @ 100mA, 25 degrees Celsius
  • Lumens Per Watt: 121lm/W
  • Manufacturer: Lumileds
