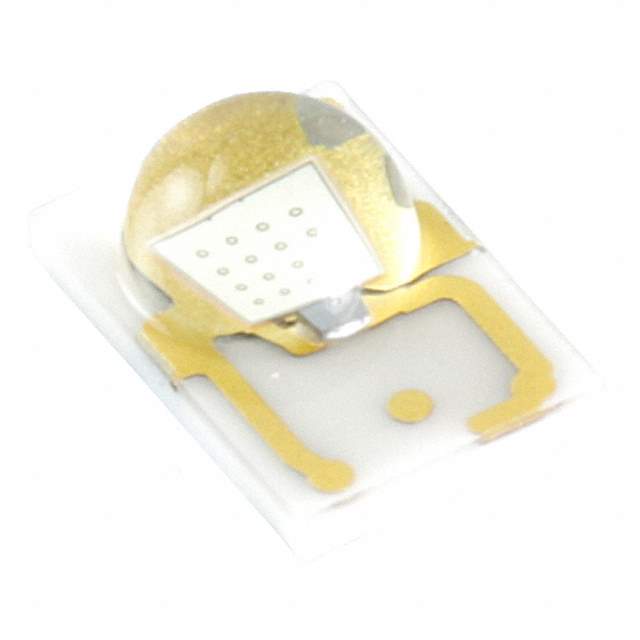

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Lumileds
Packaging Reel
Color Blue
Wavelength 470nm
Current - Test 700mA
Voltage - Forward (Vf) 2.95V
Lumens/Watt at Current - Test 32 lm/W
Current - Max 1A
Flux at Current/Temperature - Test 67lm (50lm ~ 83lm)
Test Temperature Condition 25°C
Viewing Angle 125°
Mounting Style SMD
Manufacturer Package 1812 (4532 Metric)
Supplier Device Package SMD
Parts Dimension 0.177" L x 0.120" W (4.49mm x 3.05mm)
Height - Seated (Maximum) 0.083" (2.10mm)
Thermal Resistance of Package 10°C/W
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1209782-LXML-PB02
Manufacturer Homepage www.luxeon.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian LXML-PB02 CAD Model

Description

The 1209782-LXML-PB02 is a blue LED component that comes in a 1812 (4532 Metric) SMD package.

  • It can handle a maximum current of 1A and has a viewing angle of 125 degrees.
  • @ a test current of 700mA, it has a forward voltage of 2.95V and a thermal resistance of 10 degrees Celsius per watt.
  • Its flux @ a test temperature of 25 degrees Celsius ranges from 50lm to 83lm, while its lumens per watt @ the same test current is 32 lm/W.
  • This LED component is suitable for various optoelectronics applications.
