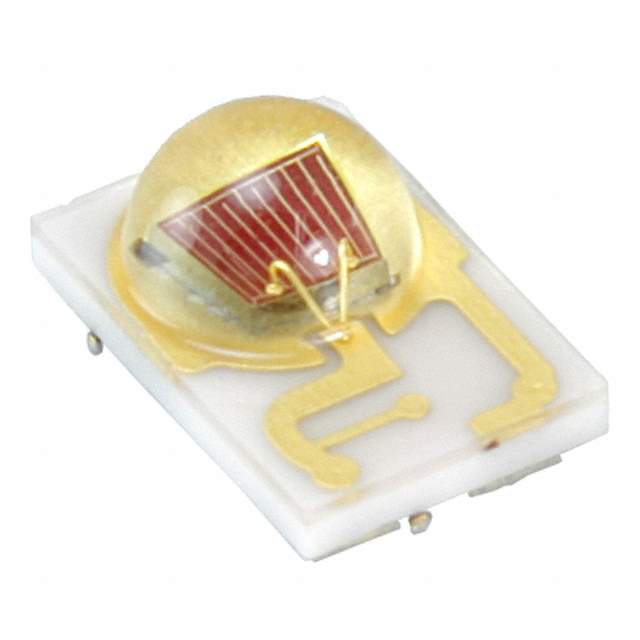

LXM2-PD01-0050 Real Image
Same model may have multiple batches, images only for reference.

LXM2-PD01-0050

Part No LXM2-PD01-0050
Manufacturer Lumileds
Catalog LED Lighting - Color
Description LED LUXEON REBEL RED SMD / LUXEON Rebel and LUXEON Rebel ES
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Lumileds
Packaging Reel
Color Red
Wavelength 627nm (Typ)
Current - Test 350mA
Voltage - Forward (Vf) (Typ) 2.1V
Lumens/Watt at Current - Test 72 lm/W
Current - Max 700mA
Flux at Current/Temperature - Test 53lm (Typ)
Temperature - Test 25°C
Viewing Angle 125°
Mounting Style SMD
Manufacturer Package 1812 (4532 Metric)
Supplier Device Package SMD
Dimension 0.177" L x 0.120" W (4.49mm x 3.05mm)
Height - Seated (Maximum) 0.083" (2.10mm)
Thermal Resistance of Package 8°C/W
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 811163-LXM2-PD01-0050
Ultra Librarian 3D Model Ultra Librarian LXM2-PD01-0050 CAD Model

Description

The Lumileds 811163-LXM2-PD01-0050 is a high-power surface-mount LED that emits red light.

  • Maximum Current: 700mA
  • Forward Voltage: 2.1V
  • Viewing Angle: 125 degrees
  • Wavelength: 627nm
  • Thermal Resistance: 8 degrees Celsius per watt
  • Device Package: 1812 (4532 metric)
  • Length: 0.177 inches (4.49mm)
  • Width: 0.120 inches (3.05mm)
  • Height: 0.083 inches (2.10mm)
  • Popularity: Medium
  • Supply and Demand Status: Limited
