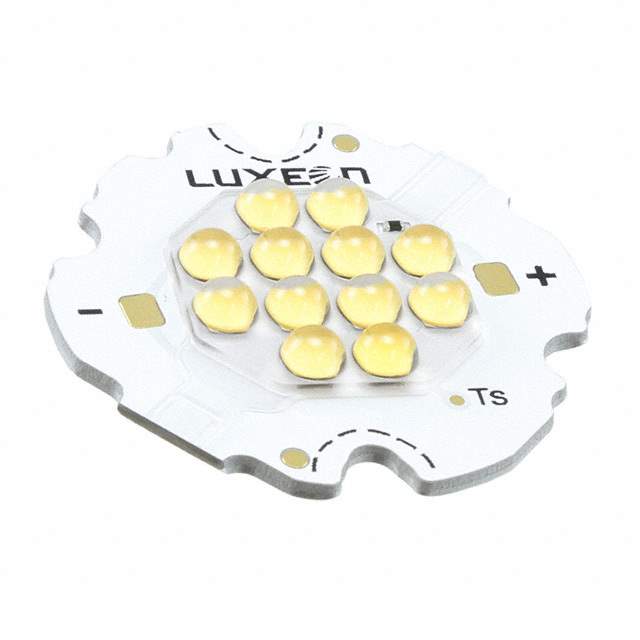

LXK8-PW40-0012-A Real Image
Same model may have multiple batches, images only for reference.

LXK8-PW40-0012-A

Part No LXK8-PW40-0012-A
Manufacturer Lumileds
Catalog Optics - LEDs - Light Pipes
Description LED, LUXEON K, 12, 4000K; Series: LUXEON K; LED Colour: White; Luminous Flux @ Tes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting SMD (SMT)
Case / Package 100
Color White
Color Rendering Index (CRI) 80
Forward Current 1.05 A
Forward Voltage 31.5 V
Height 3.42 mm
Illumination Color White
Length 24.35 mm
Lens Style Domed
Luminous Flux 1.24 klm
Max Current Rating 1.05 A
Maximum Operating Temperature 125 °C
Min Operating Temperature -40 °C
REACH SVHC No SVHC
RoHS Compliant
Test Current 350 mA
Test Temperature 85 °C
Viewing Angle 100 °
Width 17.67 mm
Win Source Part Number 1073220-LXK8-PW40-0012-A
Categories Optics - LEDs - Light Pipes
Manufacturer Lumileds
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian LXK8-PW40-0012-A CAD Model

Description

The Lumileds 1073220-LXK8-PW40-0012-A is a surface-mount LED that emits white light.

  • Forward Voltage: 31.5V
  • Maximum Current: 1.05A
  • Viewing Angle: 100 degrees
  • Luminous Flux: 1.24klm
  • Package Size: 24.35mm (length) x 17.67mm (width)
  • Height: 3.42mm
  • Popularity: Low
  • Supply and Demand Status: Shortage
