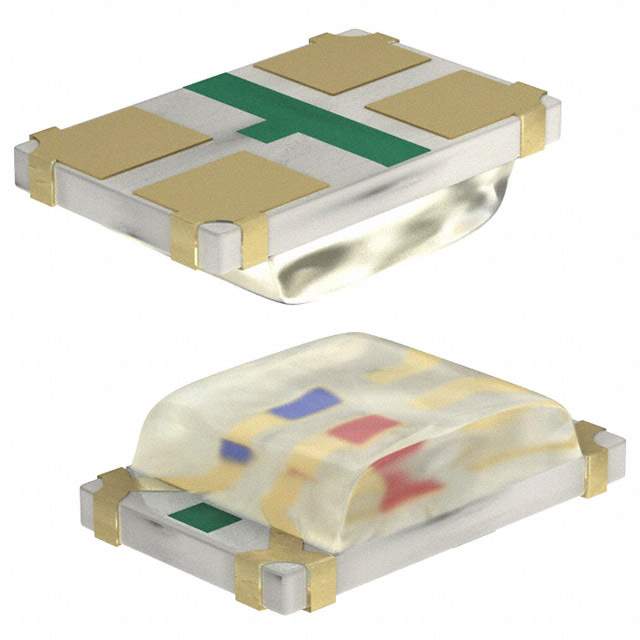

APHBM2012CGKSEKC Real Image
Same model may have multiple batches, images only for reference.

APHBM2012CGKSEKC

Part No APHBM2012CGKSEKC
Manufacturer Kingbright
Catalog LED Indication - Discrete
Description LED GREEN/ORANGE CLEAR 2012 SMD  /  Green, Orange 570nm Green, 601nm Orange LED Indication - Discrete 2.1V Green, 2.1V Orange 0805 (2012 Metric)
Datasheet
APHBM2012CGKSEKC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Kingbright
Package Tape & Reel
Color Green, Orange
Configuration Independent
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 50mcd Green, 180mcd Orange
Lens Style Rectangle with Flat Top
Lens Size 1.30mm x 1.25mm
Voltage - Forward (Vf) (Typ) 2.1V Green, 2.1V Orange
Current - Test 20mA Green, 20mA Orange
Viewing Angle 120°
Mounting SMD (SMT)
Wavelength - Dominant 570nm Green, 601nm Orange
Wavelength - Peak 574nm Green, 610nm Orange
Package / Case 0805 (2012 Metric)
Supplier Device Package 2012(0805)
Dimension 2.00mm L x 1.25mm W
Height (Max) 0.45mm
Base Product Number APHBM2012
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names APHBM2012CGKSEKC-ND,754-APHBM2012CGKSEKCDKR,754-APHBM2012CGKSEKCCT,754-APHBM2012CGKSEKCTR
Standard Package 2,000
Win Source Part Number 1150438-APHBM2012CGKSEKC
Ultra Librarian 3D Model Ultra Librarian APHBM2012CGKSEKC CAD Model

Description

The Kingbright APHBM2012CGKSEKC is an electronic component that is designed for use in optoelectronics.

  • Manufacturer: Kingbright
  • Category: LED Indication - Discrete
  • Color: Green and orange
  • Viewing Angle: 120 degrees
  • Millicandela Rating: 50mcd for green and 180mcd for orange
  • Voltage-Forward (Vf): 2.1V for green and 2.1V for orange
  • Wavelength-Dominant: 570nm for green and 601nm for orange
