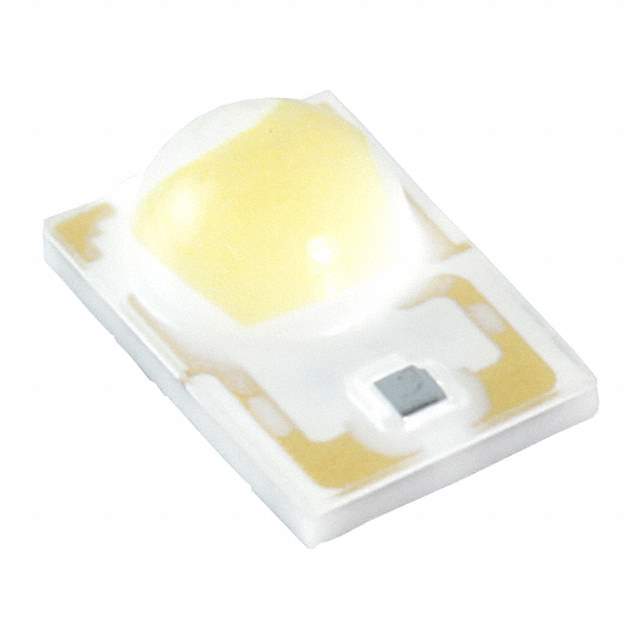

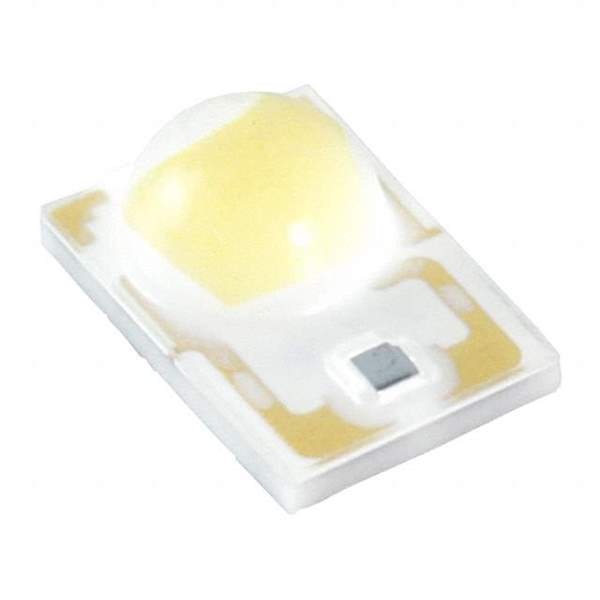

LXH8-PW40 Real Image
Same model may have multiple batches, images only for reference.

LXH8-PW40

Part No LXH8-PW40
Manufacturer Lumileds
Catalog LED Lighting - White
Description LED LUXEON NEU WHITE 4000K 3SMD / LED Lighting series White, Neutral 4000K 3-Step MacAdam Ellipse 2.81V 700mA 120° 1812 (4532 Metric)
Datasheet
LXH8-PW40 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - White
Mfr Lumileds
Series LUXEON A
Package Tape & Reel
Product Status Obsolete
Color White, Neutral
CCT (K) 4000K 3-Step MacAdam Ellipse
Flux @ 85°C, Current - Test 183lm (Typ)
Current - Test 700mA
Voltage - Forward (Vf) (Typ) 2.81V
Lumens/Watt @ Current - Test 93 lm/W
CRI (Color Rendering Index) 80
Current - Max 1A
Viewing Angle 120°
Mounting SMD (SMT)
Package / Case 1812 (4532 Metric)
Dimension 0.177" L x 0.120" W (4.49mm x 3.05mm)
Height - Seated (Max) 0.083" (2.10mm)
Thermal Resistance of Package 6°C/W
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names 1416-1020-6,1417-1020-1-ND,1417-1020-6,1417-1020-1,1417-1020-2,1417-1020-6-ND,1416-1020-2,1417-1020-2-ND,1416-1020-1
Standard Package 1,000
Win Source Part Number 1134128-LXH8-PW40
Ultra Librarian 3D Model Ultra Librarian LXH8-PW40 CAD Model

Description

The LXH8-PW40 is an electronic component used in LED lighting.

  • Series: LUXEON A
  • Colors: White and Neutral
  • Packaging: Tape and reel
  • Mounting: SMD (SMT)
  • Viewing Angle: 120 degrees
  • Voltage Forward (Vf): 2.81V
  • Current Max: 1A
  • Flux @ 85°C: 183lm (typ)
  • Status: Obsolete
  • RoHS Compliant: No
  • Counterfeit Risk: 81% probability
