Same model may have multiple batches, images only for reference.

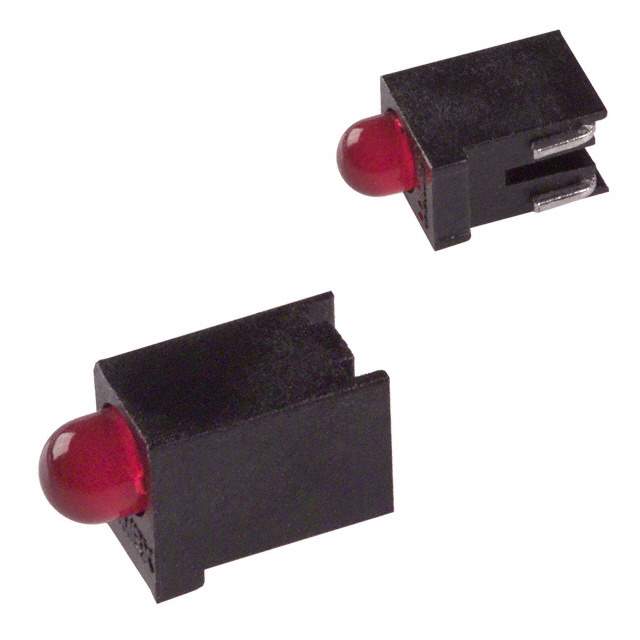

SSF-LXH305ID-TR Real Image
Same model may have multiple batches, images only for reference.

SSF-LXH305ID-TR

Part No SSF-LXH305ID-TR
Manufacturer Lumex Opto/Components Inc.
Catalog LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Description T-3mm (T-1) RIGHT ANGLE SURFACE MOUNT LED
Datasheet
SSF-LXH305ID-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Lumex Opto/Components Inc.
Packaging Reel - TR
Color Red
Wavelength - Peak 635nm
Configuration Single
Current 20mA
Millicandela Rating 40mcd
Viewing Angle 60°
Lens Type Diffused, Tinted
Lens Style/Size Round with Domed Top, 3mm (T-1)
Voltage Rating 2V
Mounting Surface Mount, Right Angle
Win Source Part Number 1259303-SSF-LXH305ID-TR
Manufacturer Homepage www.lumex.com
Popularity Medium
Supply and Demand Status Limited
Family Name SSF-LXH305ID-TR
Introduction Date April 22, 2002
ECCN EAR99
Country of Origin China, China
Halogen Free Compliant
Estimated EOL Date 2022
Ultra Librarian 3D Model Ultra Librarian SSF-LXH305ID-TR CAD Model

Description

The SSF-LXH305ID-TR is a high-brightness LED from Lumex Opto/Components Inc.

  • Peak Wavelength: 635nm
  • Viewing Angle: 60 degrees
