Same model may have multiple batches, images only for reference.

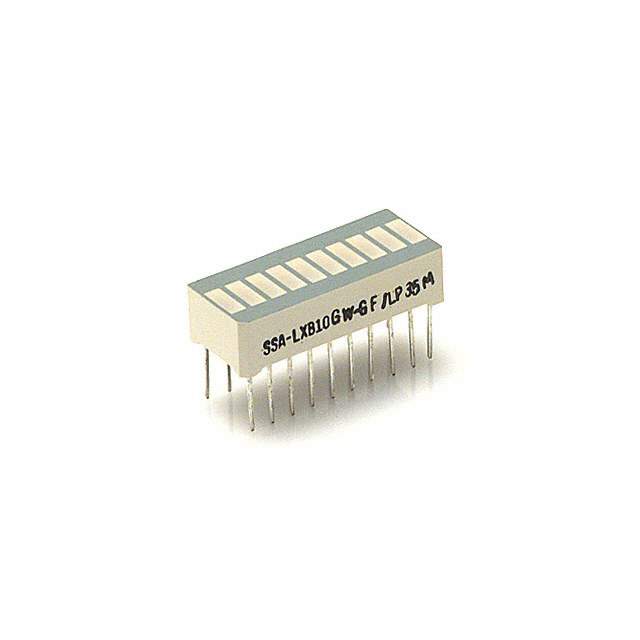

SSA-LXB10GW-GF/LP Real Image
Same model may have multiple batches, images only for reference.

SSA-LXB10GW-GF/LP

Part No SSA-LXB10GW-GF/LP
Manufacturer Lumex Opto/Components Inc.
Catalog LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Description LED ARRAY 10X25MM 10SEG GRN DIFF
Datasheet
SSA-LXB10GW-GF/LP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Lumex Opto/Components Inc.
Packaging Bulk
Status Active
Color Green (x 10)
Wavelength - Peak 565nm
Configuration Bar - 10 Wide, DIP
Current 25mA
Millicandela Rating 8mcd
Viewing Angle 160°
Lens Type Diffused, White
Lens Style/Size Rectangle with Flat Top, 5.00mm x 1.74mm
Voltage Rating 2.2V
Mounting Through Hole
Win Source Part Number 047262-SSA-LXB10GW-GF/LP
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian SSA-LXB10GW-GF/LP CAD Model

Description

The SSA-LXB10GW-GF/LP is a green LED bar from Lumex Opto/Components Inc.

  • Shape: Rectangular with a flat top
  • Viewing Angle: 160 degrees
  • Millicandela Rating: 8mcd
  • Wavelength Peak: 565nm
  • Lens: Diffused white
  • Operating Current: 25mA
  • Voltage Rating: 2.2V
  • Mounting: Through-hole
  • Configuration: 10 wide DIP
  • Supply and Demand Status: Limited
