Same model may have multiple batches, images only for reference.

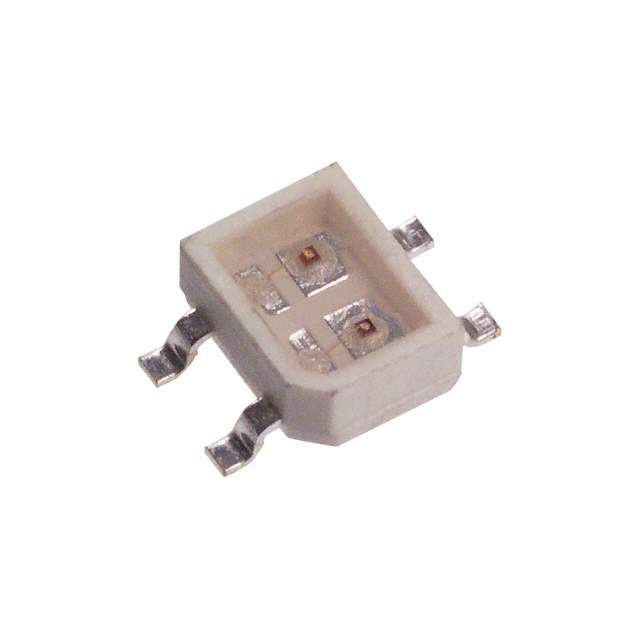

SSL-LXA3025IGC-TR Real Image
Same model may have multiple batches, images only for reference.

SSL-LXA3025IGC-TR

Part No SSL-LXA3025IGC-TR
Manufacturer Lumex Opto/Components Inc.
Catalog LED Indication - Discrete
Description LED GREEN/RED CLEAR AXIAL SMD / Green, Red LED Indication - Discrete 2.2V Green, 2V Red 4-SMD, Gull Wing
Datasheet
SSL-LXA3025IGC-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Lumex Opto/Components Inc.
Package Tape & Reel
Color Green, Red
Configuration Independent
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 20mcd Green, 12mcd Red
Lens Style Rectangle with Flat Top
Voltage - Forward (Vf) (Typ) 2.2V Green, 2V Red
Current - Test 20mA Green, 20mA Red
Viewing Angle 130°
Mounting SMD (SMT)
Wavelength - Peak 565nm Green, 635nm Red
Package / Case 4-SMD, Gull Wing
Supplier Device Package Axial
Dimension 3.40mm L x 2.80mm W
Height (Max) 1.50mm
Base Product Number SSL-LXA3025
Other Names 67-1372-2,SSLLXA3025IGCTR,Q586182A,67-1372-1R,LU604215CT,67-1372-6R,67-1372-1,67-1372-2R,LU604215TR,67-1372-6
Standard Package 1,000
MSL Level 4 (72 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1241898-SSL-LXA3025IGC-TR
Ultra Librarian 3D Model Ultra Librarian SSL-LXA3025IGC-TR CAD Model

Description

The SSL-LXA3025IGC-TR LED indication from Lumex Opto/Components Inc. is a green and red color optoelectronic that comes in a tape and reel package.

  • Viewing Angle: 130°
  • Millicandela Rating: 20mcd for green and 12mcd for red
  • Voltage-Forward (Vf): 2.2V for green and 2V for red
  • Wavelength Peak: 565nm for green and 635nm for red
  • ECCN: EAR99
  • REACH: Unaffected
