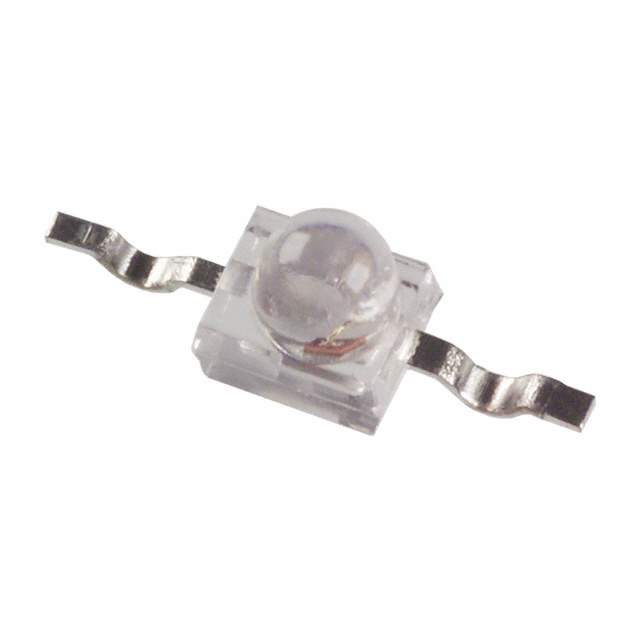

SSL-LXA228SOC-TR21 Real Image
Same model may have multiple batches, images only for reference.

SSL-LXA228SOC-TR21

Part No SSL-LXA228SOC-TR21
Manufacturer Lumex Opto/Components Inc.
Catalog LED Indication - Discrete
Description LED ORANGE CLEAR AXIAL SMD / Orange LED Indication - Discrete 2V 2-SMD, Yoke Bend
Datasheet
SSL-LXA228SOC-TR21 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Lumex Opto/Components Inc.
Package Tape & Reel (TR)
Color Orange
Configuration Standard
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 700mcd
Lens Style Round with Domed Top
Lens Size 1.90mm Dia
Voltage - Forward (Vf) (Typ) 2V
Viewing Angle 25°
Mounting Type Surface Mount, Bottom Entry
Wavelength - Peak 610nm
Package / Case 2-SMD, Yoke Bend
Supplier Device Package Axial
Dimension 2.50mm L x 2.00mm W
Height (Max) 2.90mm
Base Product Number SSL-LXA228
Other Names SSL-LXA228SOCTR21R,SSL-LXA228SOCTR21
Standard Package 1,000
MSL Level 4 (72 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1241759-SSL-LXA228SOC-TR21
Ultra Librarian 3D Model Ultra Librarian SSL-LXA228SOC-TR21 CAD Model

Description

The SSL-LXA228SOC-TR21 is an LED indication discrete component from Lumex Opto/Components Inc.

  • Mounting Type: Surface Mount, Bottom Entry
  • Package/Case: 2-SMD, yoke bend form
  • Viewing Angle: 25 degrees
  • Lens Transparency: Colorless
  • Lens Style: Clear Round with a Domed Top
  • Lens Size: 1.90mm diameter
  • Height: 2.90mm
  • Millicandela Rating: 700mcd
  • Forward Voltage: 2V
  • Wavelength Peak: 610nm
  • Configuration: Standard
  • Packaging: Tape and Reel (TR) with a standard package of 1,000
  • REACH: Compliant and is unaffected
  • ECCN: EAR99
