Same model may have multiple batches, images only for reference.

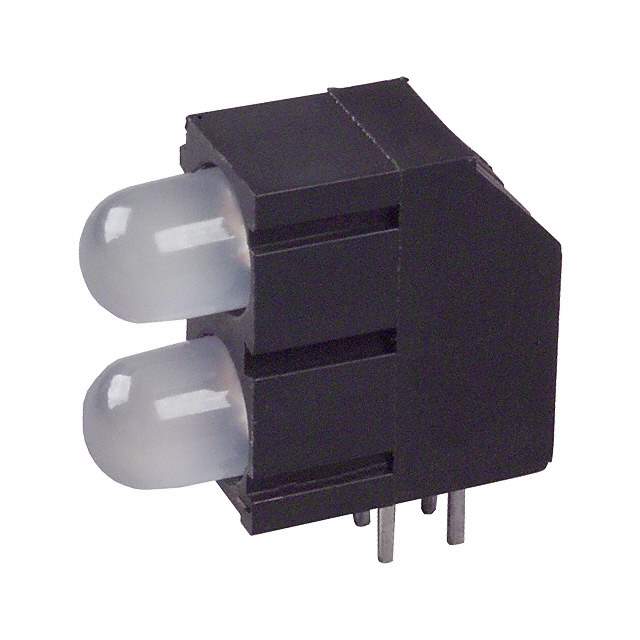

SSF-LXHM250IGIGW Real Image
Same model may have multiple batches, images only for reference.

SSF-LXHM250IGIGW

Part No SSF-LXHM250IGIGW
Manufacturer Lumex Opto/Components Inc.
Catalog LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Description LED 5MM 2-HI MATING RED/GRN PCMT / LED Circuit Board Indicator LED Circuit Board Indicator 2 High Green, Red (x 2) Diffused, White 2.2V Green, 2V Red 20mA Round with Domed Top 5mm, T-1 3/4 Through Hole, Right Angle
Datasheet
SSF-LXHM250IGIGW Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Mfr Lumex Opto/Components Inc.
Package Bulk
Color Green, Red (x 2)
Wavelength - Peak 565nm, 635nm
Configuration 2 High
Current 20mA
Millicandela Rating 25mcd Green, 30mcd Red
Viewing Angle 60°
Lens Type Diffused, White
Lens Style Round with Domed Top
Lens Size 5mm, T-1 3/4
Voltage Rating 2.2V Green, 2V Red
Mounting Type Through Hole, Right Angle
Base Product Number SSF-LXHM250
Other Names 67-1281R,SSF-LXH250MIGIGW,LU202715,67-1281,SSFLXHM250IGIGW
Standard Package 250
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1238236-SSF-LXHM250IGIGW
Ultra Librarian 3D Model Ultra Librarian SSF-LXHM250IGIGW CAD Model

Description

The SSF-LXHM250IGIGW is a configuration of 2 high green and red LEDs with a millicandela rating of 25mcd for green and 30mcd for red.

  • Viewing Angle: 60 degrees
  • Voltage Rating: 2.2V for green and 2V for red
  • Mounting Type: Through-Hole, Right-Angle
  • Lens Type: Round, Domed Top
  • Lens Size: 5mm, T-1 3/4
  • Package: Bulk
  • Category: Optoelectronics
  • Application: LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
  • Wavelength Peak: 565nm for green and 635nm for red
  • Current: 20mA
