Same model may have multiple batches, images only for reference.

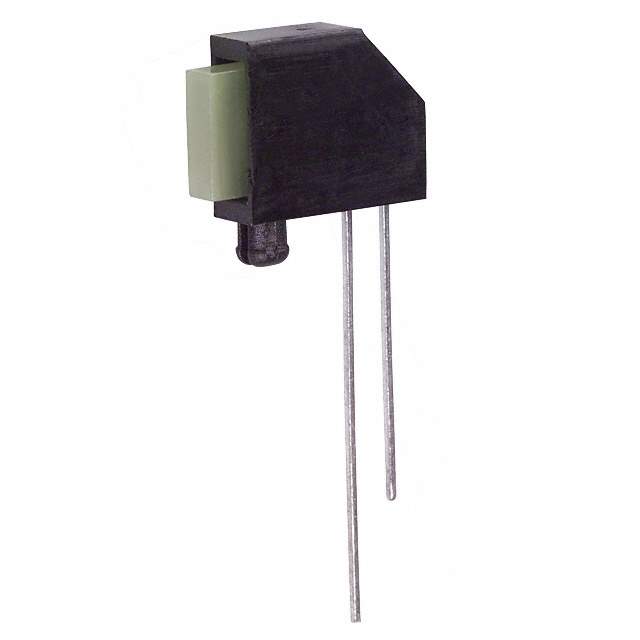

SSF-LXH25780YD Real Image
Same model may have multiple batches, images only for reference.

SSF-LXH25780YD

Part No SSF-LXH25780YD
Manufacturer Lumex Opto/Components Inc.
Catalog LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Description LED 2.5X7MM RECT RA YEL DIFFPCMT / LED Circuit Board Indicator LED Circuit Board Indicator Bar - Single, SIP Yellow Diffused, Tinted 2.1V 20mA Rectangle with Flat Top 7.00mm x 2.50mm Through Hole, Right Angle
Datasheet
SSF-LXH25780YD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Mfr Lumex Opto/Components Inc.
Package Bulk
Color Yellow
Wavelength - Peak 585nm
Configuration Bar - Single, SIP
Current 20mA
Millicandela Rating 9mcd
Viewing Angle 110°
Lens Type Diffused, Tinted
Lens Style Rectangle with Flat Top
Lens Size 7.00mm x 2.50mm
Voltage Rating 2.1V
Mounting Type Through Hole, Right Angle
Base Product Number SSF-LXH25780
Other Names LU20237,67-1271R,67-1271,SSFLXH25780YD
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1238131-SSF-LXH25780YD
Ultra Librarian 3D Model Ultra Librarian SSF-LXH25780YD CAD Model

Description

The Lumex Opto/Components Inc. SSF-LXH25780YD is a yellow LED bar that is designed to operate @ a voltage rating of 2.1V and a current of 20mA.

  • Viewing Angle: 110 degrees
  • Millicandela Rating: 9mcd
  • Peak Wavelength: 585nm
  • Packaging: Bulk
  • Use: Ideal for use in optoelectronics applications
