Same model may have multiple batches, images only for reference.

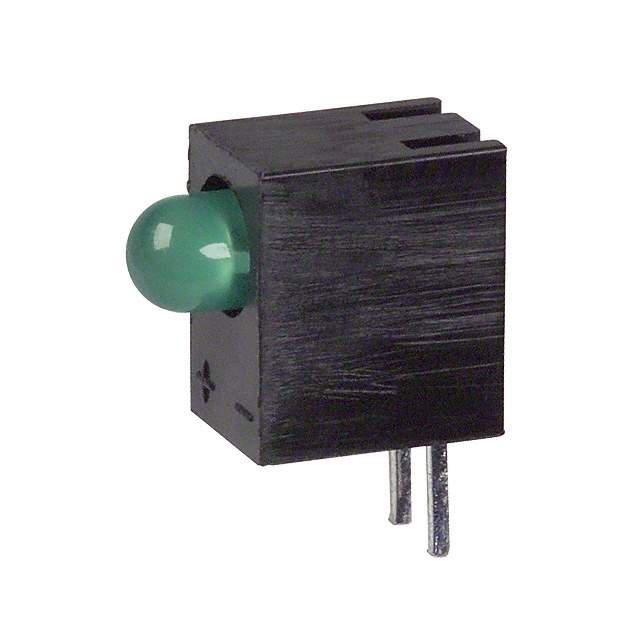

SSF-LXH103GD-5V Real Image
Same model may have multiple batches, images only for reference.

SSF-LXH103GD-5V

Part No SSF-LXH103GD-5V
Manufacturer Lumex Opto/Components Inc.
Catalog LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Description LED 3MM RA 5V FAULT-IND GRN PCMT / LED Circuit Board Indicator LED Circuit Board Indicator Single Green Diffused, Tinted 5V 12mA Round with Domed Top 3mm, T-1 Through Hole, Right Angle
Datasheet
SSF-LXH103GD-5V Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Mfr Lumex Opto/Components Inc.
Package Bulk
Color Green
Wavelength - Peak 565nm
Configuration Single
Current 12mA
Millicandela Rating 80mcd
Viewing Angle 8°
Lens Type Diffused, Tinted
Lens Style Round with Domed Top
Lens Size 3mm, T-1
Voltage Rating 5V
Mounting Type Through Hole, Right Angle
Base Product Number SSF-LXH103
Other Names LU20135,SSFLXH103GD5V,67-1242R,67-1242
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1238223-SSF-LXH103GD-5V
Ultra Librarian 3D Model Ultra Librarian SSF-LXH103GD-5V CAD Model

Description

The SSF-LXH103GD-5V is an LED from Lumex Opto/Components Inc.

  • Color: Green
  • Voltage Rating: 5V
  • Viewing Angle: 8°
  • Millicandela Rating: 80mcd
  • Wavelength Peak: 565nm
  • Current: 12mA
  • Mounting Type: Through-Hole, Right Angle
  • Lens Type: Diffused, Tinted
  • Lens Style: Round with a Domed Top
  • Lens Size: 3mm, T-1
  • Ideal Use: Optoelectronics, LEDs - circuit board indicators, arrays, light bars, bar graphs applications
