Same model may have multiple batches, images only for reference.

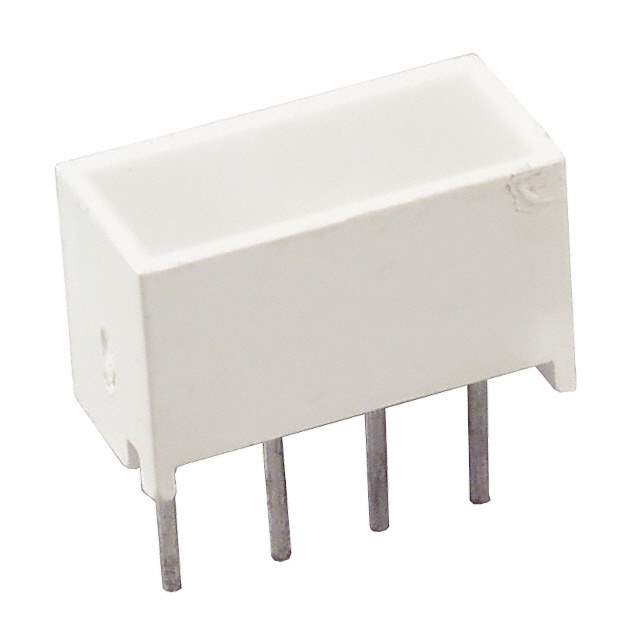

SSB-LXA100SRW Real Image
Same model may have multiple batches, images only for reference.

SSB-LXA100SRW

Part No SSB-LXA100SRW
Manufacturer Lumex Opto/Components Inc.
Catalog LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Description LED LT BAR 2CHP LOW-INT RED DIFF / LED Circuit Board Indicator LED Circuit Board Indicator Bar - Single, SIP Red Diffused, White 1.7V 30mA Rectangle with Flat Top 8.89mm x 3.81mm Through Hole
Datasheet
SSB-LXA100SRW Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Mfr Lumex Opto/Components Inc.
Package Bulk
Color Red
Wavelength - Peak 660nm
Configuration Bar - Single, SIP
Current 30mA
Millicandela Rating 40mcd
Viewing Angle 160°
Lens Type Diffused, White
Lens Style Rectangle with Flat Top
Lens Size 8.89mm x 3.81mm
Voltage Rating 1.7V
Mounting Type Through Hole
Base Product Number SSB-LXA100
Other Names 67-1030,67-1030R
Standard Package 50
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1238155-SSB-LXA100SRW
Ultra Librarian 3D Model Ultra Librarian SSB-LXA100SRW CAD Model

Description

The SSB-LXA100SRW is a bar-shaped LED with a diffused white lens that emits a bright red light with a peak wavelength of 660nm.

  • Viewing Angle: 160 degrees
  • Millicandela Rating: 40mcd
  • Voltage Rating: 1.7V
  • Current: 30mA
  • Mounting: Through a hole
  • Lens: Rectangular with a flat top, measuring 8.89mm x 3.81mm
  • Packaging: Bulk
  • Standard Package: 50
  • Peak Wavelength: 660nm
