Same model may have multiple batches, images only for reference.

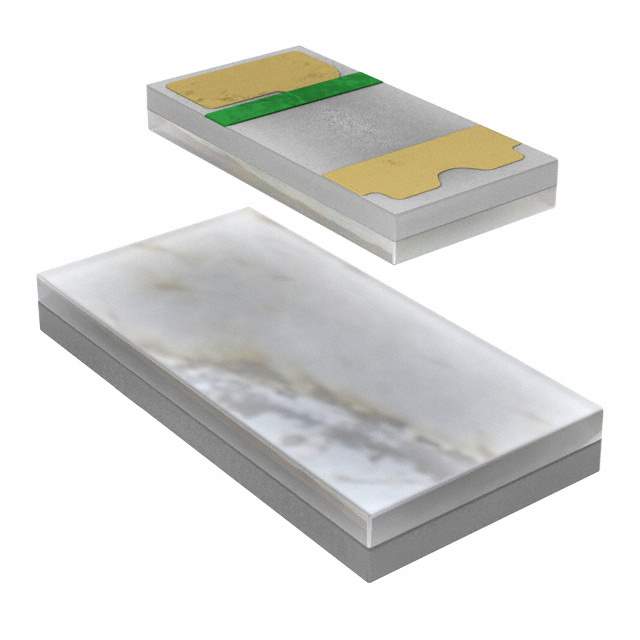

SML-LXFP0603SIC-TR Real Image
Same model may have multiple batches, images only for reference.

SML-LXFP0603SIC-TR

Part No SML-LXFP0603SIC-TR
Manufacturer Lumex Opto/Components Inc.
Catalog LED Indication - Discrete
Description LED RED CLEAR SMD / Red LED Indication - Discrete 2V 0603 (1608 Metric)
Datasheet
SML-LXFP0603SIC-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Lumex Opto/Components Inc.
Package Tape & Reel
Color Red
Configuration Standard
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 33mcd
Lens Style Rectangle with Flat Top
Lens Size 1.60mm x 0.80mm
Voltage - Forward (Vf) (Typ) 2V
Current - Test 5mA
Viewing Angle 130°
Mounting SMD (SMT)
Wavelength - Peak 628nm
Package / Case 0603 (1608 Metric)
Supplier Device Package SMD
Dimension 1.60mm L x 0.80mm W
Height (Max) 0.20mm
Base Product Number SML-LXFP0603
Other Names 67-2219-1,67-2219-2,67-2219-6
Standard Package 3,000
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1241855-SML-LXFP0603SIC-TR
Ultra Librarian 3D Model Ultra Librarian SML-LXFP0603SIC-TR CAD Model

Description

The SML-LXFP0603SIC-TR is a red LED indication component manufactured by Lumex Opto/Components Inc.

  • Configuration: Standard configuration SMD (SMT) LED
  • Viewing Angle: 130 degrees
  • Lens Style: Rectangle with a flat top
  • Lens Size: 1.60mm x 0.80mm with a height of 0.20mm
  • Millicandela Rating: 33mcd
  • Forward Voltage: 2V
  • Current Test: 5mA
  • Wavelength Peak: 628nm
  • Lens Color: Colorless with clear transparency
  • Package: Tape and reel package with a standard package of 3,000
  • Ideal for: Optoelectronics applications
