Same model may have multiple batches, images only for reference.

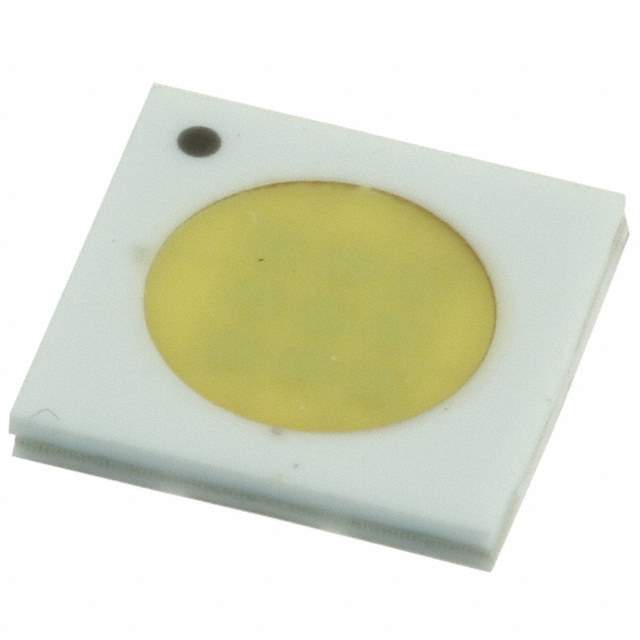

SML-LX4747UWC-TR10 Real Image
Same model may have multiple batches, images only for reference.

SML-LX4747UWC-TR10

Part No SML-LX4747UWC-TR10
Manufacturer Lumex Opto/Components Inc.
Catalog LED Lighting - White
Description LED TITANBRITE COOL WHITE 6SMD / LED Lighting series White, Cool 6000K 10.4V 1A 120° 6-SMD, No Lead Exposed Pad
Datasheet
SML-LX4747UWC-TR10 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - White
Mfr Lumex Opto/Components Inc.
Series TitanBrite™
Package Tape & Reel (TR)
Color White, Cool
CCT (K) 6000K
Flux @ 25°C, Current - Test 600lm (Typ)
Current - Test 1A
Voltage - Forward (Vf) (Typ) 10.4V
Lumens/Watt @ Current - Test 58 lm/W
Current - Max 1.2A
Viewing Angle 120°
Mounting SMD (SMT)
Package / Case 6-SMD, No Lead Exposed Pad
Supplier Device Package SMD
Dimension 0.472" L x 0.472" W (12.00mm x 12.00mm)
Height - Seated (Max) 0.047" (1.20mm)
Thermal Resistance of Package 3.5°C/W
Base Product Number SML-LX4747
Other Names SMLLX4747UWCTR10,67-2132-6,67-2132-2,67-2132-1
Standard Package 100
MSL Level 2A (4 Weeks)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1240265-SML-LX4747UWC-TR10
Ultra Librarian 3D Model Ultra Librarian SML-LX4747UWC-TR10 CAD Model

Description

The Lumex Opto/Components Inc. LED Lighting - White is an electronic component that comes in a tape & reel package with 100 standard packages.

  • Mounting: SMD (SMT)
  • Current-Max: 1.2A
  • Viewing Angle: 120°
  • Voltage-Forward (Vf): 10.4V
  • Current-Test: 1A
  • CCT (K): 6000K
  • Flux @ 25°C, current-test: 600lm (Typ)
  • Lumens/watt @ current-test: 58 lm/W
  • Thermal Resistance of Package: 3.5°C/W
  • ECCN: EAR99
