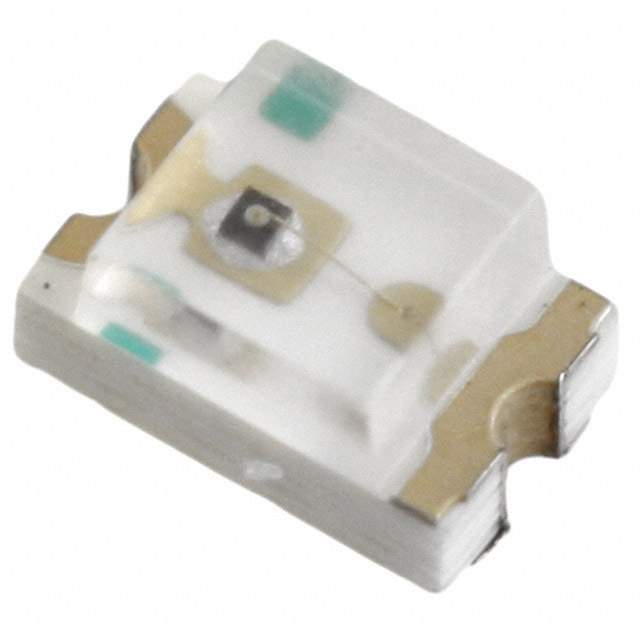

Same model may have multiple batches, images only for reference.

SML-LX0805SYC-TR

Name: SML-LX0805SYC-TR
Brand: Lumex Opto/Components Inc.
SKU: 1241828
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	SML-LX0805SYC-TR
Manufacturer	Lumex Opto/Components Inc.
Catalog	LED Indication - Discrete
Description	LED YELLOW CLEAR SMD / Yellow LED Indication - Discrete 2.1V 0805 (2012 Metric)
Datasheet	SML-LX0805SYC-TR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Optoelectronics>LED Indication - Discrete
Mfr	Lumex Opto/Components Inc.
Package	Tape & Reel
Color	Yellow
Configuration	Standard
Lens Color	Colorless
Lens Transparency	Clear
Millicandela Rating	60mcd
Lens Style	Rectangle with Flat Top
Lens Size	1.40mm x 1.25mm
Voltage - Forward (Vf) (Typ)	2.1V
Current - Test	20mA
Viewing Angle	140°
Mounting	SMD (SMT)
Wavelength - Peak	590nm
Package / Case	0805 (2012 Metric)
Dimension	2.00mm L x 1.25mm W
Height (Max)	1.20mm
Base Product Number	SML-LX0805
Other Names	67-2234-2,67-2234-1,67-2234-6,SML-LX0805SYC-TRR,SML-LX0805SYC-TR
Standard Package	3,000
MSL Level	3 (168 Hours)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.41.0000
Win Source Part Number	1241828-SML-LX0805SYC-TR
Ultra Librarian 3D Model	Ultra Librarian SML-LX0805SYC-TR CAD Model

Alternative Products

Description

The SML-LX0805SYC-TR LED Indication - Discrete component from Lumex Opto/Components Inc. is a yellow SMD LED that comes in a tape and reel package.

Viewing Angle: 140 degrees
Millicandela Rating: 60mcd
Voltage-Forward: 2.1V
Current-Test: 20mA
Wavelength Peak: 590nm
Height: 1.20mm
Package/Case: 0805 (2012 Metric)
Dimension: 2.00mm L x 1.25mm W
Lens Style: Rectangle with a flat top
Lens Size: 1.40mm x 1.25mm
Perfect for: Use in optoelectronics applications that require a yellow light source
